High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine

China High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine supplier
High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine supplier

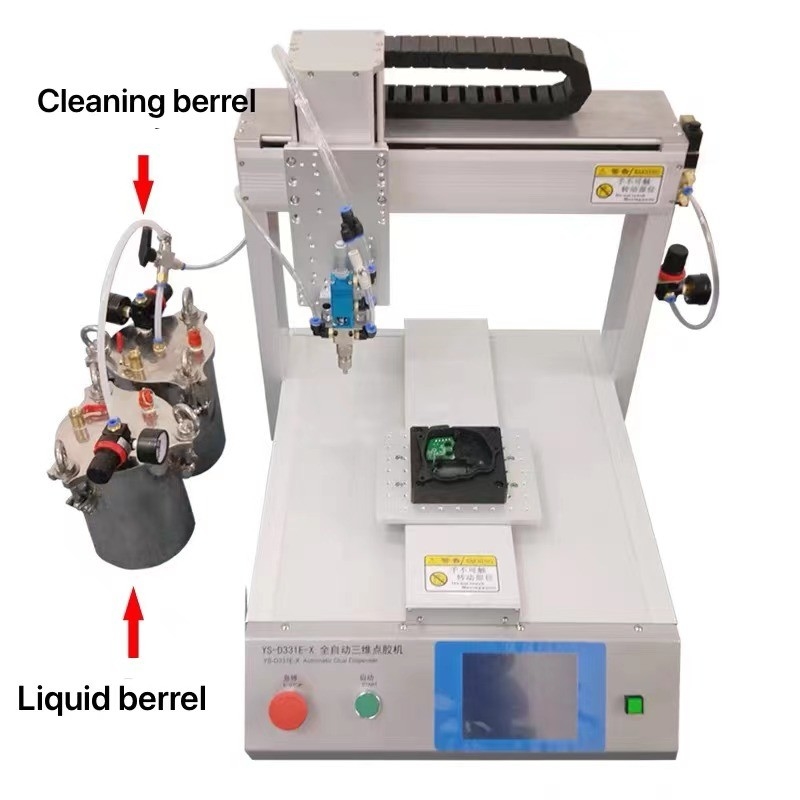

Large Image :  High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-D331E-X

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 300 SETS per month
Contact Now
Detailed Product Description
Name: Spraying PCB Conformal Coating Machine Usage: For Pcb Conformal Coating , Uv Glue,etc
Program Type: LCD Touch Screen Language: English

High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine

Intro:



Automatic Spraying PCB Conformal Coating Machine is widedly used for glue dispensing for various product and glue. It is Desktop type, can be placed on the production line. The glud dispenser is progamable with LCD touch display, can easily set working area and other parameters. It has 3 axis, X Y Z.



For sparying, we will provide coating valve.



Suitable:



  • UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
  • Can make point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage,etc
  • Can be customized accroding to customer's product and needs.

Technical Parameters:

Glue dispensing machine working platform can be customized according to customers' need.



Model YS-D331-X YS-D441-X YS-D551-X
Working area(X/Y/Zmm) 300x300x60 400x400x60 500x500x60
Max. Speed 500mm/sec
Resolution 0.01mm
Repeatability +/-0.01mm
Display 5.7’ LCD
Drive mode Micro Stepping Motor
Power 220V /110V
Working enviroment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH

Size(L*W*H) 460x450x480mm 560x550x500 660x650x550
Weight 70KG 80KG 90KG



Features:

1.English touch panel to set parameters, easy operation.

2. Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.

5. Precise stepper motor, numerical control available

6.Apply 3-axis robot to control the dispensing position to ensure high precision of glue dispensing

7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

8.Have air clean device,can gurrantee the material clean and dry.

9. CAD document can be imported to simplify the operation

High Precision Automatic Conformal Coating Machine Spraying PCB Conformal Coating Machine
