Desktop Automatic Spraying Machine For Conformal Coating of PCB Assembly
Intro:
YS-D331E-X is a multi-functional glue filling coating machine. It can work for various liquid dispensing or spraying. Operator can program needed working routes by pressing the 5.7 inch LCD display, like circle, oval, dot, line, suare,etc
- 5.7 inch LCD display for programming
- English operation language and system
- Can work for 110V or 220V
- Optional pressure berrel, dispensing valve, silicone bucket,etc
Note: We can provide different solutions according to customers' dispensing or spraying requirements
Working Video: https://youtube.com/shorts/uVaxF6Eji-k?feature=share
Suitable:
This machine can work for pcb used conformal coating liquid, silicone glue, UV glue, AB two components glue, hot melt glue, etc
It is widely used for various products and liquid.
Specification
| Model |
YS-D331E |
YS-D441E |
YS-D551E |
YS-D461E |
| Working area |
300*300*100 |
400*400*100 |
500*500*100 |
400*600*100 |
| Control system |
Independent R D |
| Driver |
Stepper motor+sliver guideway+timing belt |
| Repeatability |
+/-0.02-0.05mm |
| Air pressure |
0.4-0.7Mpa |
| Speed |
500mm/s |
| Power |
220/110V 50/60HZ 350W |
| Max load |
XYZ 10kg |
| Display |
5.7inch screen |
Programme
method |
Screen operation /connect to PC |
| File total |
Number unlimited,16M |
| I/O signal |
16 inputs/16 outputs |
| Weight |
35kg |
45kg |
55kg |
65kg |
| Size |
680*570*680 |
780*670*680 |
880*770*680 |
|

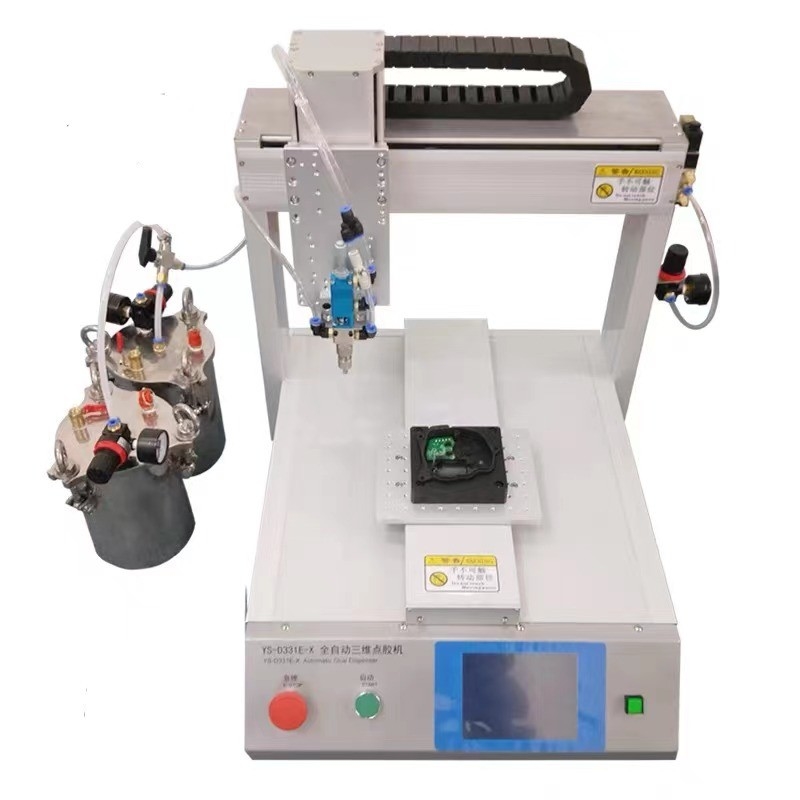

PCB Confirmal Coating Spraying Machine pictures
