Hot Melt Adhesive Dispenser Desktop Hot Melt Adhesive Dispenser Desktop Three/Four Axis Hot Melt Adhesive Dispenser
Product Details:
|
Detailed Product Description
| Name: | Hot Melt Adhesive Dispenser | For: | Packed Hot Melt Adhesive |
|---|
Hot Melt Adhesive Dispenser Desktop Hot Melt Adhesive Dispenser Desktop Three/Four Axis Hot Melt Adhesive Dispenser
Intro:
Place the hot melt adhesive cartridge in a special heater, use the dispensing controller to press out the glue, and the three-axis manipulator completes the dispensing path.
Suitable:
This machine is for packaging hot melt adhesive
It is suitable for bonding electronic products such as mobile phone shells, notebook shells, tablet computer shells, etc.
Technical Parameters
| Model | YS-D331E | YS-D441E | YS-D551E |
| Working area(X/Y/Zmm) | 300x300x100 | 400x400x100 | 500x500x100 |
| Max. Speed | 500mm/sec | ||
| Resolution | 0.01mm | ||
| Repeatability | +/-0.01mm | ||
| Display | 5.7’ LCD | ||
| Drive mode | Micro Stepping Motor | ||
| Power | 220V /110V | ||
| Working enviroment |
Temperature:5-40 degrees Celsius Humidity:20-90%RH |
||
| Size(L*W*H) | 460x450x480mm | 560x550x500 | 660x650x550 |
| Weight | 40KG | 50KG | 60KG |
Features:
1. English interface input, easy to learn and understand, no need for external teaching pendant, more convenient to debug than similar products, simple and convenient, high-speed and accurate.
2. It has functions such as drawing points, lines, arcs, circles, and irregular curve continuous tweening input programs, and can be 3D dispensing.
3. The size and thickness of glue volume, glue application speed, glue dispensing time, and glue stop time can be set by parameters, and the glue output is stable and does not leak glue.
4. Adjust the air pressure, suck back, and control the amount of glue to meet the uniform and high-quality dispensing.
5. You can directly preview the editing track and make corresponding adjustments.
6. The dispensing track can be called at any time, and the files of multiple dispensing tracks can be stored without repeated editing.
7. Up to 16 IO expansion ports and 2 motor expansion ports, can control up to 6 motors
8. It can be connected with PC to save file data.
9. The special computer upper computer software can be controlled by the PC to control the real-time movement of the machine
10. Use the Omron temperature control meter to control the temperature, temperature control: ±1℃
11. Suitable for packaging hot melt adhesive

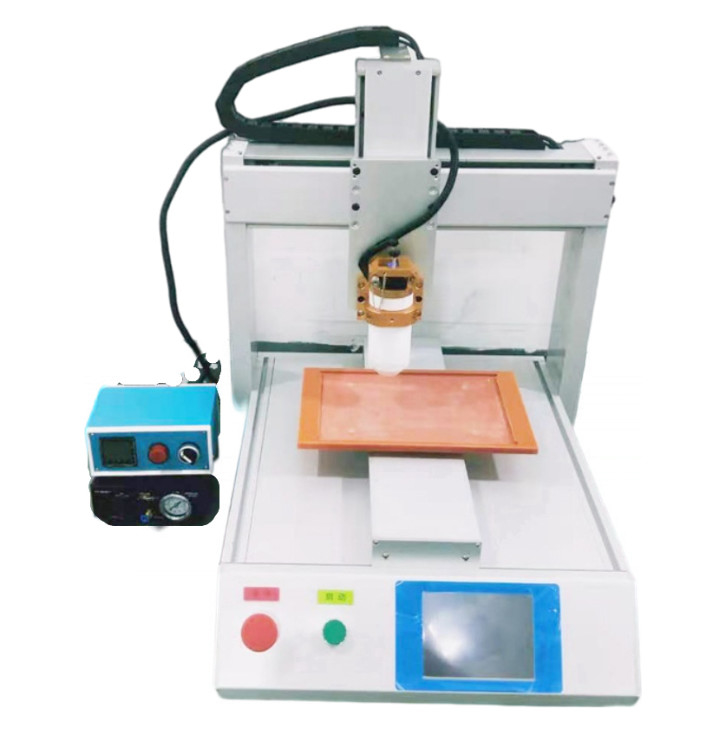

Hot melt adhesive dispensing machine picture
