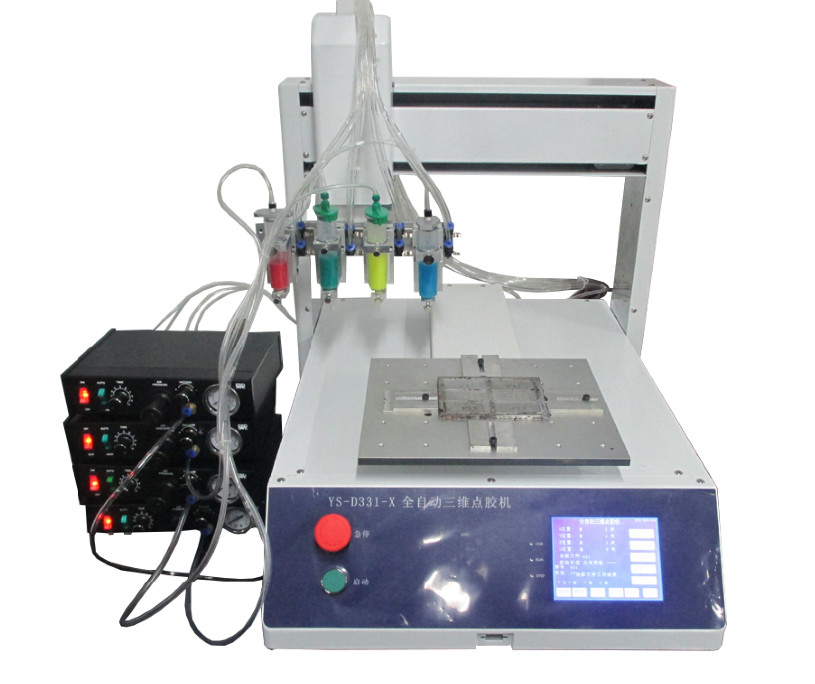

Multiple color glue dispenser / oil painting machine
  • Multiple color glue dispenser / oil painting machine
  • Multiple color glue dispenser / oil painting machine

Multiple color glue dispenser / oil painting machine

Place of Origin China
Brand Name RKENS
Certification CE
Model Number YS-D331E
Product Details
Name:
Multiple Color Glue Dispenser / Oil Painting Machine
Suitable:
Various Products And Adhesive Dispensing
Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
Wooden box
Product Description

Multiple color glue dispenser / oil painting machine



Features
1.Dome all kinds colors of oil and paint. Four color/ eight color and twelve color. Single
control each dispensing heads, separate dispensing.
2.Complete 3 axis and 4 axis doming. It can quickly dot, lines, circles and various irregular
graphics on the product surface, outer wall, vertical surface, gap, spherical surface. Precise
positioning, precise control of glue, no drawing, no leaking, no dripping.
3.Programme by PC or machine . Easy operate and high accuracy.
4.Special software make PC control come true.
5.Suitable for all viscosity glue, oil and other liquids. Tank can be provided as your requirements.
6.More than 20 years manufacturer with strong R&D and production ability, sound QC system and
perfect after-sale service. Robotsung has become a nationwide famous brand in China.


Application:
1. Electro-acoustic industry: horn, loudspeaker, buzzer, earphone.
2. Inductance industry: small transformer, SMD transformer, inductance, relay, small coil motor.
3. Communication industry: keypad, phone shell, interphone, telephone, fax machine.
4. Computer, digital products, digital camera, MP3, MP4, electronic toy, chassis adhesion.
5. Switch, connector, wire rod, plug cable.
6. Electronics: electron component, integrated circuit, circuit board solder paste, LCD screen, etc.
7. Optics: optical lenses, magnetic head.
8.Mechanical hardware, battery box sealing, label fixing adhesion, car parts coating.
9. Food packaging.
10. LED industry.


Applicable glue: single color or multiple colors oil and paint.



Machine specification:



Model YS-D331E YS-D441E YS-D551E
Working area(X/Y/Z mm) 300x300x100 400x400x100 500x500x100
Driver Stepper motor+sliver guideway+timing belt
Repeatability +/-0.02-0.05mm
Max. Speed 500mm/sec
Language English and Chinese
Display 5.7’ touch screen
Drive mode Micro Stepping Motor
Power 220V /110V 50HZ/60HZ
Program method Screen operation /connect to PC
I/O signal 16 inputs/16 outputs
File total unlimited,16M
Air pressure 0.4-0.7Mpa
Size(L*W*H) 460x450x480mm 560x550x500 660x650x550
Weight 40KG 50KG 60KG



Multiple color glue dispenser / oil painting machine 0

Multiple color glue dispenser / oil painting machine 1

Multiple color glue dispenser / oil painting machine 2

Multiple color glue dispenser / oil painting machine 3

Multiple color glue dispenser / oil painting machine 4
