YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser
  • YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser
  • YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser

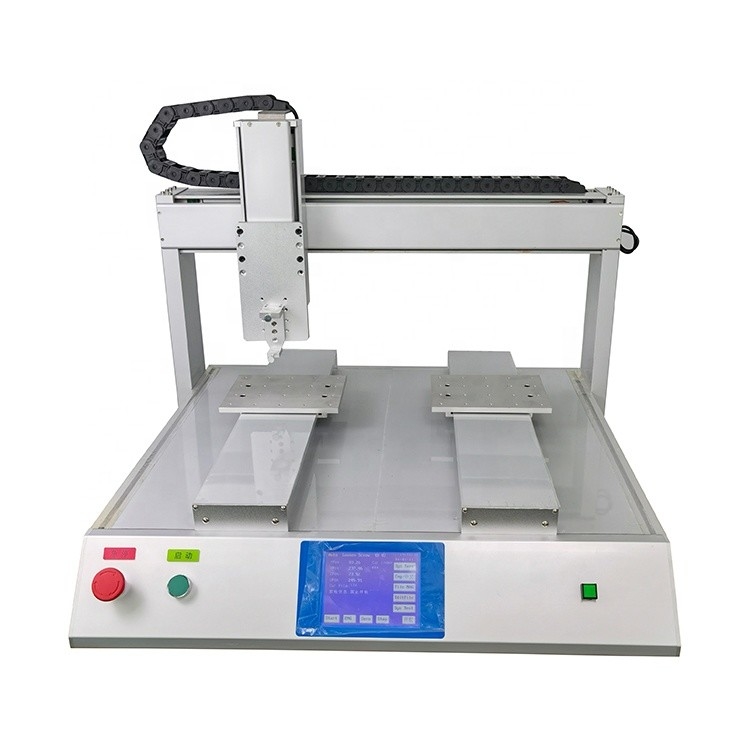

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser

Place of Origin China
Brand Name RKENS
Model Number YS-D542
Product Details
Name:
3 Axis Glue Dispensing Robot
Working Table:
2
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Wooden case
Delivery Time
7-10 days
Payment Terms
T/T, Western Union
Supply Ability
300 SETS per month
Product Description

Two Working Platform 3 Axis Glue Dispensing Machine

Intro:

This glue dispensing machine YS-D542 has two working platforms.  The automatic machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, no wire drawing, no glue leakage, and no glue dripping. The glue dispenser is mainly used for the precise point, injection, coating and dripping of glue, paint and other liquids in the product process to the precise position of each product, which can be used to achieve dots, lines, circles or arcs.

  • 220V/110V 50HZ/60HZ
  • 3 Axis to control dispensing
  • English language operation
  • LCD touch panel display



Suitable:



  • Working platform can be customized accroding to customer's product and needs.
  • Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Technical Parameters:

Glue dispensing machine working platform can be customized according to customers' need.

Model
YS-D542
Working area(X*Y*Z)
200x400x100MM
  Working table     2
Control system
Independent R D
Driver
Stepper motor+sliver guideway+timing belt
Repeatability
+/-0.02-0.05mm
Air pressure
0.4-0.7Mpa
Speed
500mm/s
Power
220/110V 50/60HZ 350W
Max load
XYZ 10kg
Display
5.7inch screen
Programme
method
Screen operation /connect to PC
File total
Number unlimited,16M
I/O signal
16 inputs/16 outputs
Weight
80kg
Size
750*720*680

Features:



1) Full automatic robot glue dispenser, 3 axis. Locate precisely.

2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.



Pictures of Robot glue dispenser, automatic glue dispensing machine

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser 0

Our Glue Filling machines

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser 1

YS-D542 Two Working Table 3 Axis Glue Dispensing Machine, Glue Dispenser 2
