Auto Glue Dispensing Machine For Gluing Filling Coating Liquid With Programmable LCD Display
Intro:
Dispensing machine, also known as glue dispenser, glue adhesive spraying machine, gluing machine, glue filling machine, etc., It is specially designed to control the fluid liquid. The automatic machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, no wire drawing, no glue leakage, and no glue dripping. The glue dispenser is mainly used for the precise point, injection, coating and dripping of glue, paint and other liquids in the product process to the precise position of each product.
Suitable:
The gluing machine is used for Dispensing, bonding, pouring, coating, sealing, filling, dripping, linear/curved circular gluing, and more
It can work for various glue, Silicone, EMI conductive glue, UV glue, AB glue, quick-drying glue, epoxy glue, sealant, red glue, EPOXY (black glue), white glue, silver glue, thermal paste, solder mask, clear paint, screw fixing agent, SILICON, etc.
Parameters:
Model |
YS-D331E |
YS-D441E |
YS-D551E |
Working area(X/Y/Zmm) |
300x300x100 |
400x400x100 |
500x500x100 |
Max. Speed |
500mm/sec |
Resolution |
0.01mm |
Repeatability |
+/-0.01mm |
Display |
5.7’ LCD |
Drive mode |
Micro Stepping Motor |
Power |
220V /110V |
Working enviroment |
Temperature:5-40 degrees Celsius
Humidity:20-90%RH
|
Size(L*W*H) |
460x450x480mm |
560x550x500 |
660x650x550 |
Weight |
40KG |
50KG |
60KG |
Key features:
1. The automatic glue dispensing machine can realize three-dimensional and four-dimensional path dispensing, and can quickly dot, draw lines, circles and various irregular graphics on the product surface, outer wall, vertical surface, gap, and spherical surface. Precise positioning, precise glue control, no wire drawing, no glue leakage, no glue dripping.
2. It can be imported from computer graphics or edited on the touch screen of the fuselage, with simple and convenient operation and high precision.
3. The special computer host computer software can control the real-time movement of the machine by the PC, and can be connected with the PC to save the file data
4. The large work surface can place multiple products at a time, and the dispensing is more efficient. Various work surface models can be customized according to the size of the product.
5. It can be equipped with multiple dispensing heads and operate at the same time to double the dispensing efficiency.
6. It is suitable for liquid dispensing of various concentrations of glue, paint, ink, etc. It can be equipped with a large-capacity pressure barrel for glue storage operation to save glue replacement time.

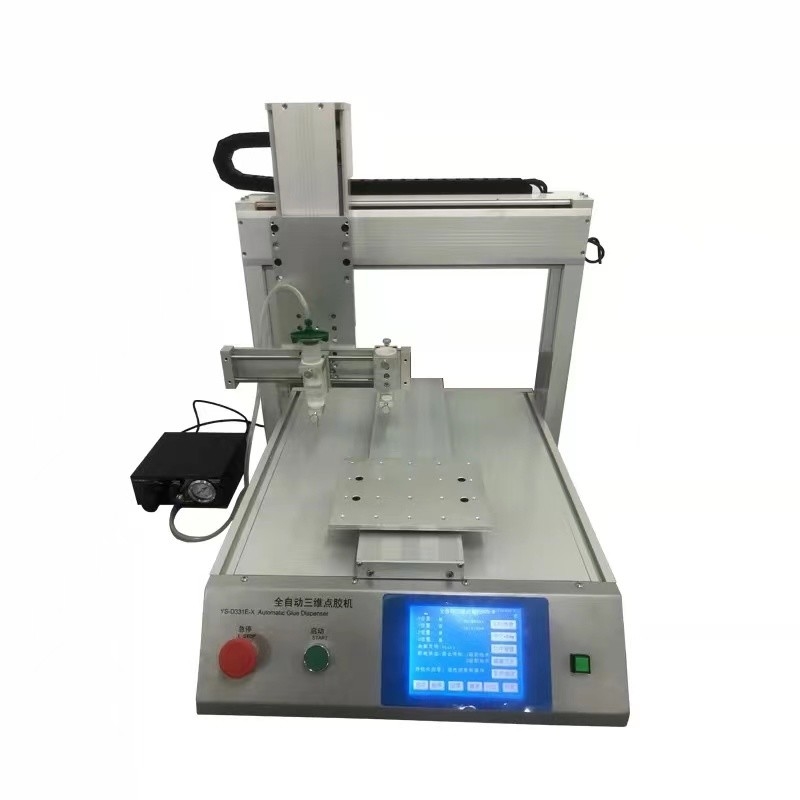

Glue dispensing machine picture
