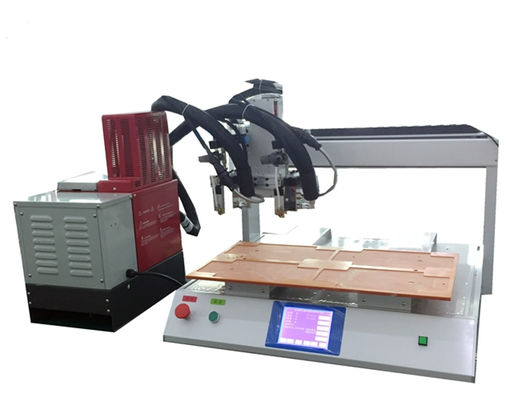

Desktop Automatic Hot Melt Glue Dispensing Machine for Electronic Industry
Intro:
This hot melt glue dispensing machine is for glue in Block, flake, granular.
It has a Auto Heater toheat the glue. We have 5L tank,10L ,20L tank for your option.
Hot melt adhesive spraying equipment consists of main engine, throat pipe, gun body
module and other components.
Machine video: https://youtube.com/shorts/Js0Ba85kkE0?feature=share
Other suitable glues:
UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Specifications:
| Model |
YS-D331E |
YS-D441E |
YS-D551E |
YS-D461E |
| Working area |
300*300*100 |
400*400*100 |
500*500*100 |
400*600*100 |
| Control system |
Independent R D |
| Driver |
Stepper motor+sliver guideway+timing belt |
| Repeatability |
+/-0.02-0.05mm |
| Air pressure |
0.4-0.7Mpa |
| Speed |
500mm/s |
| Power |
220/110V 50/60HZ 350W |
| Max load |
XYZ 10kg |
| Display |
5.7inch screen |
| Programme method |
Screen operation /connect to PC |
| File total |
Number unlimited,16M |
| I/O signal |
16 inputs/16 outputs |
| Weight |
35kg |
45kg |
55kg |
65kg |
| Size |
680*570*680 |
780*670*680 |
880*770*680 |
|
Features:
1. Full-automatic glue dispenser can dispense through 3D and 4D path. It can quickly draw dot, line circle and all kinds of irregular figures on the surface, vertical plane, gap and spherical surface.
2. Graphics import or machine screen edit, easy to operate with high precision.
3. Big scale workstation can place multiple products, which is more efficient. Workstation can be customized according to the size of product.
4. Glue dispenser can be equipped with several dispensing heads and operate at the same time, greatly increasing dispensing efficiency.
5. Glue dispenser is applicable for all kinds of glue. Dispensing liquid such as oil paint and printing ink needs to equip additional high-capacity pressure barrel to reduce glue changing time.
Intro of the heating elements:
