3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language

China 3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language supplier
3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language supplier

Large Image :  3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: YS-D331E

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 300 SETS per month
Contact Now
Detailed Product Description
Name: 3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine Power Supply: 220V/110V 50HZ/60HZ
Language: English Dispensing Routes: Programmable

Automatic programmable sealant/sealing glue dispensing dispenser machine

Intro:

The glue dispensing machine is used for  Dispensing, bonding, pouring, coating, sealing, filling, dripping, linear/curved circular gluing. There are 3-axis and 4-axis machine.

Operator can program all parameters  by the touch screen.





Available glue:

UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...



Applicable objects:

For dispensing various glues on Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.

3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language



Features

  • Full Automatic, English. Easy operation
  • Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
  • Adjustable gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
  • Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
  • Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be customized according to the product size.
  • Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...



Technical Parameters

Model YS-D331E YS-D441E YS-D551E
Working area(X/Y/Zmm) 300x300x100 400x400x100 500x500x100
Max. Speed 500mm/sec
Resolution 0.01mm
Repeatability +/-0.01mm
Display 5.7’ LCD
Drive mode Micro Stepping Motor
Power 220V /110V
Working enviroment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH
Size(L*W*H) 460x450x480mm 560x550x500 660x650x550
Weight 40KG 50KG 60KG

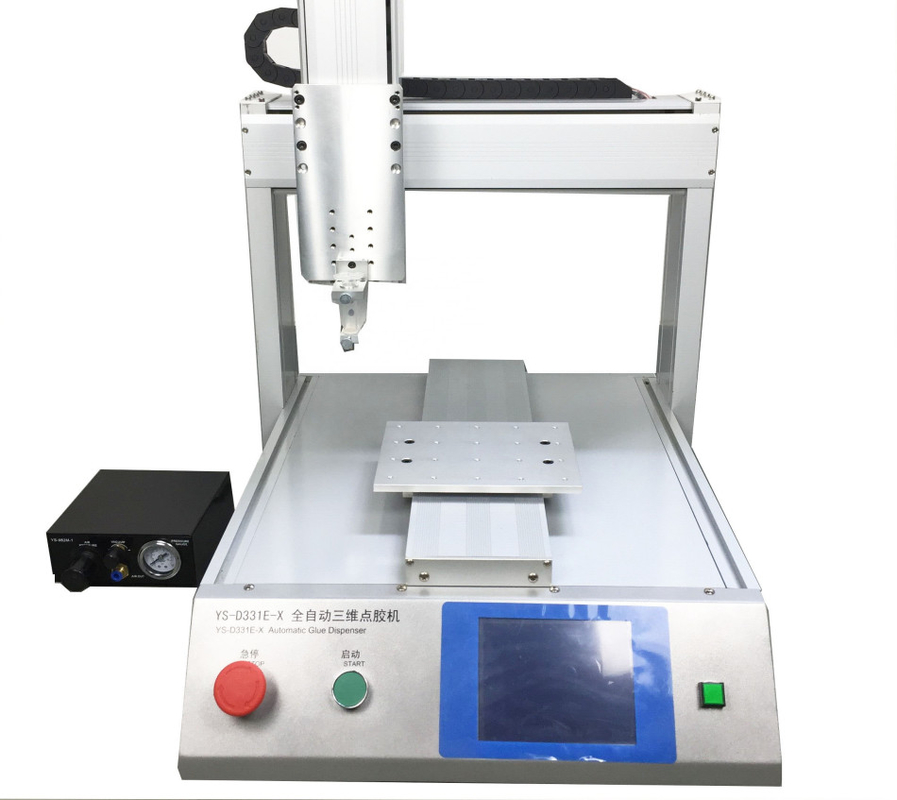

Pictures of Robot glue dispenser, automatic glue dispensing machine



3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language

3 Axis Touch Panel Liquid Adhesive Glue Filling Dispensing Machine With English Language
