Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine

China Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine supplier
Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine supplier

Large Image :  Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine

Product Details:

Place of Origin: China
Brand Name: RKENS

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Packaging Details: Wooden case
Delivery Time: 7-10 days
Payment Terms: T/T, Western Union
Supply Ability: 300 SETS per month
Contact Now
Detailed Product Description
Name: Hot Sale Grease Glue Dispensing Robot , Automatic Glue Dispenser Machine

Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine

Intro:

Automatic Two Parts Liquid Glue Potting Filling Machine works for AB two-component glue. It uses precise gear metering pump or screw pump to measure, extract and mix according to the specified ratio.
An automatic machine that drips, coats, and pots liquid on the surface or inside of the product to make it a device for sealing, fixing, and waterproofing.



Suitable:

Mainly widely used in the automotive electronics industry, LED industry, handicraft industry. Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue; it has also been widely used in other industries.
Traditional manual glue filling has many disadvantages:
1. Completely manual operation, inaccurate mixing ratio, uneven glue amount, resulting in defects such as non-drying of the glue, which reduces the qualified rate of the product.
2. The manual filling speed is slow and the output cannot be raised.
3. Manual recruitment and management are difficult.
4. The waste of glue caused by pure artificial is large.



Available glue:

Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue



Parameters



YS-D331/YS-DD441/YS-D551 /YS-D542



Mixing ratio 1: 1-1: 10 Adjustable
Glue filling speed 0.5-15 g adjustable (according to glue characteristics)
Glue filling accuracy Glue amount ±2% Proportion: ±2%
3 axis working area

XYZ 300x300x100MM (can be customized), 400x400x100mm,

500x500x100mm, 250(X)x400(Y)x100(Z)MM

Glue viscosity <=2000CPS
Operation mode Manual Or automatic
Glue ratio mixing Pump measurement
Programming method Teaching programming
Mixing system static/dynamic mixing
A pump gear pump/screw pump
B pump gear pump/screw pump
Pressure tank 10L, 20L, 30L optional
A B plastic bucket mixing Optional
A B plastic barrel heating Optional
Defoaming function Optional
Washing bucket capacity 5L
Power voltage 220V/110V 50HZ/60HZ

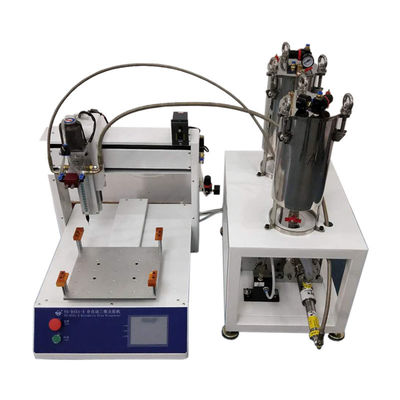

Detailed machine picture



Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine

Two Components Epoxy Resin And Hardener Glue Mixing And Filling Potting machine
