Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System
  • Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System

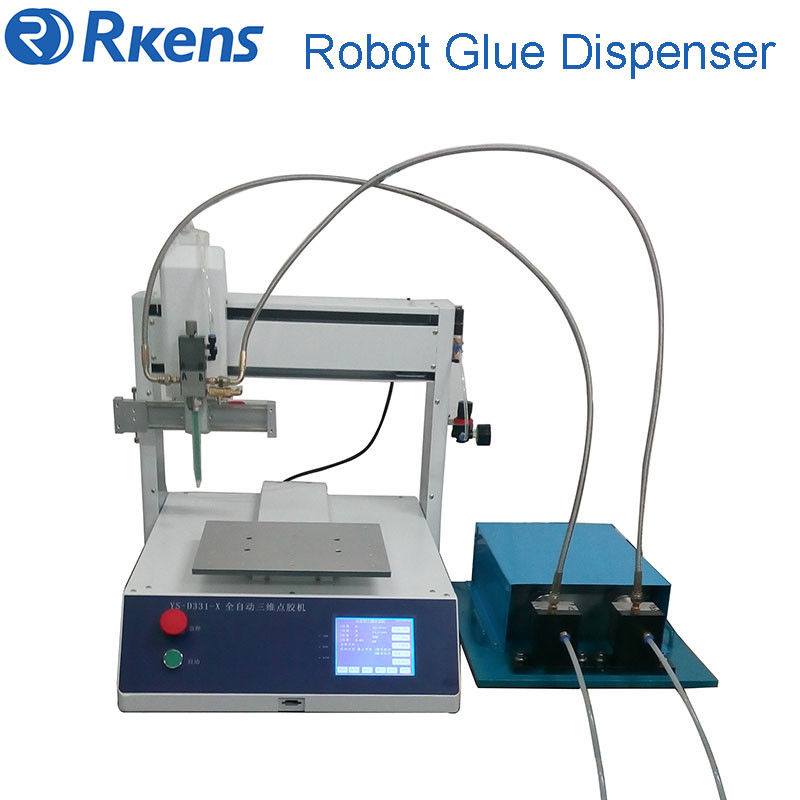

Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System

Place of Origin China
Brand Name RKENS
Model Number YS-D331E
Product Details
Name:
AB Glue Dispensing Equipment For LED Industry With CE Certificate
Payment & Shipping Terms
Minimum Order Quantity
1SET
Packaging Details
Wooden case
Delivery Time
7-10 days
Payment Terms
T/T, Western Union
Supply Ability
300 SETS per month
Product Description

Two-Components Glue Dispensing Machine , CNC liquid Glue Dispenser Machine

Intro:



Two-Components Glue Dispensing Machine is can work for AB gule with two componetns. Customer can mix two glues in a certain radio, then put glues into syringe for dispensing. Also we can customize mixing system , which can mix 2 components in a reqired radia, then send glue to machine for automatic dispensing.



Machine video:  https://youtu.be/giqovcBzi8U







Suitable:



  • Two components AB glue
  • 3- axis glue dispensing movement
  • Can make point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage,etc
  • Working platform be customized accroding to customer's product size
  • Programmable, LCD touch panel to set glue quantity, speed, etc



Technical Parameters:



Glue dispensing machine working platform can be customized according to customers' need.



Model YS-D331E YS-D441E YS-D551E
Working area(X/Y/Zmm) 300x300x100 400x400x100 500x500x100
Max. Speed 500mm/sec
Resolution 0.01mm
Repeatability +/-0.01mm
Display 5.7’ LCD
Drive mode Micro Stepping Motor
Power 220V /110V
Working enviroment

Temperature:5-40 degrees Celsius

Humidity:20-90%RH

Size(L*W*H) 460x450x480mm 560x550x500 660x650x550
Weight 40KG 50KG

60KG



















Features:

1.English touch panel to set parameters, easy operation.

2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.

3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

4.The dispensing head set the micro touch switch, convenient operation; no air pressure, power can work.

5. Precise stepper motor, numerical control available

6.Apply 3-axis robot to control the dispensing position to ensure high precision of glue dispensing

7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.

8.Have air clean device,can gurrantee the material clean and dry.

9. CAD document can be imported to simplify the operation



Our glue filling machine pictures

Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System 0

Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System 1

Two Components Automatic Glue Dispenser 300x300x60 Mm With Automatic Mixing System 2
