Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue
  • Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue
  • Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue

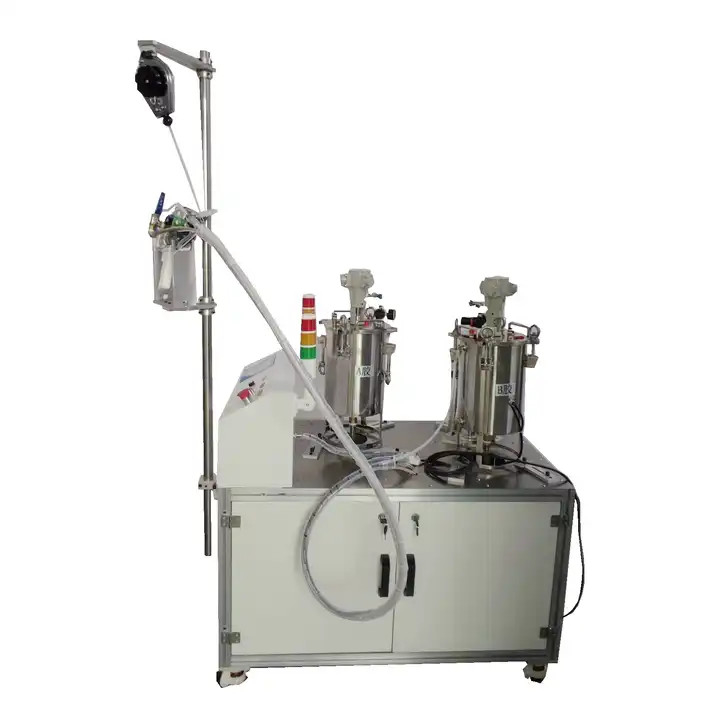

Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue

Place of Origin China
Brand Name RKENS
Model Number YS-Glue-F
Product Details
Name:
Two Parts Liquid Glue Dispensing Potting Filling Machine
Type:
Semi-Automatic
Product Description

Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue

Intro:

Semi-automatic Two Parts Liquid Glue Potting Filling Machine works for AB two-component glue. It uses precise gear metering pump or screw pump to measure, extract and mix according to the specified ratio. An automatic machine that drips, coats, and pots liquid on the surface or inside of the product to make it a device for sealing, fixing, and waterproofing.


Suitable:

Mainly widely used in the automotive electronics industry, LED industry, handicraft industry. Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue; it has also been widely used in other industries.
Traditional manual glue filling has many disadvantages:
1. Completely manual operation, inaccurate mixing ratio, uneven glue amount, resulting in defects such as non-drying of the glue, which reduces the qualified rate of the product.
2. The manual filling speed is slow and the output cannot be raised.
3. Manual recruitment and management are difficult.
4. The waste of glue caused by pure artificial is large.



Available glue:

Suitable for various proportions of epoxy resin or polyurethane,
Efficient potting of crystal glue

Features:

1. 5. 7 inch touch screen, stand-alone operation, easy to learn and understand
2. Proportioning according to needs, realizing glue filling while mixing, saving glue to the greatest extent;
3. Glue A and Glue B are stored separately to ensure that the glue will not solidify after being placed for a long time;
4. Glue amount size, thickness, glue speed, glue dispensing time, glue stop time can be parameterized, and the glue quantity is stable and does not leak glue
5. Dynamic or static mixing can be used to mix well and fully
6. The unique control system is not affected by air pressure, avoiding uneven glue output, drawing bubbles, etc.
7. Optional glue mixing, heating and reserved vacuum defoaming function, suitable for different types of infusion processes

Technical Parameters:

Full Automatic Two Parts Liquid Glue Potting Filling Machine With Mixing Ratio

Mixing ratio 1: 1-1: 10 Adjustable
Glue filling speed 0.5-15 g adjustable (according to glue characteristics)
Glue filling accuracy Glue amount ±2% Proportion: ±2%
3 axis working area 300x300x100MM (can be customized)
Glue viscosity <=2000CPS
Operation mode Manual Or automatic
Glue ratio mixing Pump measurement
Programming method Teaching programming
Mixing system static/dynamic mixing
A pump gear pump/screw pump
B pump gear pump/screw pump
Pressure tank 10L, 20L, 30L optional
A B plastic bucket mixing Optional
A B plastic barrel heating Optional
Defoaming function Optional
Washing bucket capacity 5L
Power voltage 220V/110V 50HZ/60HZ



Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue 0



Semi-automatic Glue Liquid Filling Potting Machine For 2 Components Glue 1
