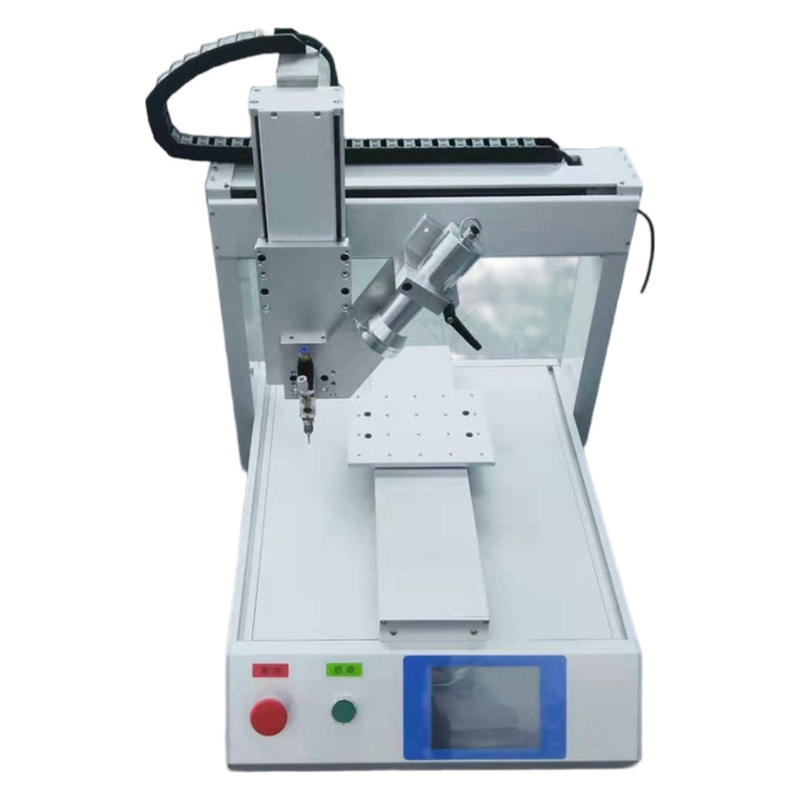

Encapsulated AB Two Components Glue Dispenser AB Glue Push Glue Dispenser For Any Ratio
Intro
This machine works for packed two-components glue, epoxy and hardener. There is a Cylinder to push glue from the package into the mixing tube. And valve to controll the glue quantity. Fast speed and high accuracy.
Suitable
This machine is suitable for two components glue. Also it can work for other glues, like UV glue, silicone glue. We will change relative parts for different types of glue.
Technical Parameters:
Glue dispensing machine working platform can be customized according to customers' need.
| Model |
YS-D331E |
YS-D441E |
YS-D551E |
| Working area(X/Y/Zmm) |
300x300x100 |
400x400x100 |
500x500x100 |
| Max. Speed |
500mm/sec |
| Resolution |
0.01mm |
| Repeatability |
+/-0.01mm |
| Display |
5.7’ LCD |
| Drive mode |
Micro Stepping Motor |
| Power |
220V /110V |
| Working enviroment |
Temperature:5-40 degrees Celsius
Humidity:20-90%RH
|
| Size(L*W*H) |
460x450x480mm |
560x550x500 |
660x650x550 |
| Weight |
40KG |
50KG |
60KG |
Features:
1) Full automatic robot glue dispenser, 3 axis. Locate precisely.
2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
Suitable for packed two components expoxy glue
