Two Working Platform 3 Axis Glue Dispensing Machine
Intro:
This glue dispensing machine YS-D542 has two working platforms. The automatic machine that drips and coats the fluid on the surface of the product or inside the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise glue control, no wire drawing, no glue leakage, and no glue dripping. The glue dispenser is mainly used for the precise point, injection, coating and dripping of glue, paint and other liquids in the product process to the precise position of each product, which can be used to achieve dots, lines, circles or arcs.
- 220V/110V 50HZ/60HZ
- 3 Axis to control dispensing
- English language operation
- LCD touch panel display
Suitable:
- Working platform can be customized accroding to customer's product and needs.
- Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Technical Parameters:
Glue dispensing machine working platform can be customized according to customers' need.
|
Model
|
YS-D542
|
|
Working area(X*Y*Z)
|
200x400x100MM
|
| Working table |
2 |
|
Control system
|
Independent R D
|
|
Driver
|
Stepper motor+sliver guideway+timing belt
|
|
Repeatability
|
+/-0.02-0.05mm
|
|
Air pressure
|
0.4-0.7Mpa
|
|
Speed
|
500mm/s
|
|
Power
|
220/110V 50/60HZ 350W
|
|
Max load
|
XYZ 10kg
|
|
Display
|
5.7inch screen
|
|
Programme
method
|
Screen operation /connect to PC
|
|
File total
|
Number unlimited,16M
|
|
I/O signal
|
16 inputs/16 outputs
|
|
Weight
|
80kg
|
|
Size
|
750*720*680
|
Features:
1) Full automatic robot glue dispenser, 3 axis. Locate precisely.
2.) Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
3) Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage on specified location of the product.
4) Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be adjustable accoring to the size of procuct.
5) Can be equipped with several heads for working at the same time to increase dispensing efficiency.
6 ) Can set glue amount, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.

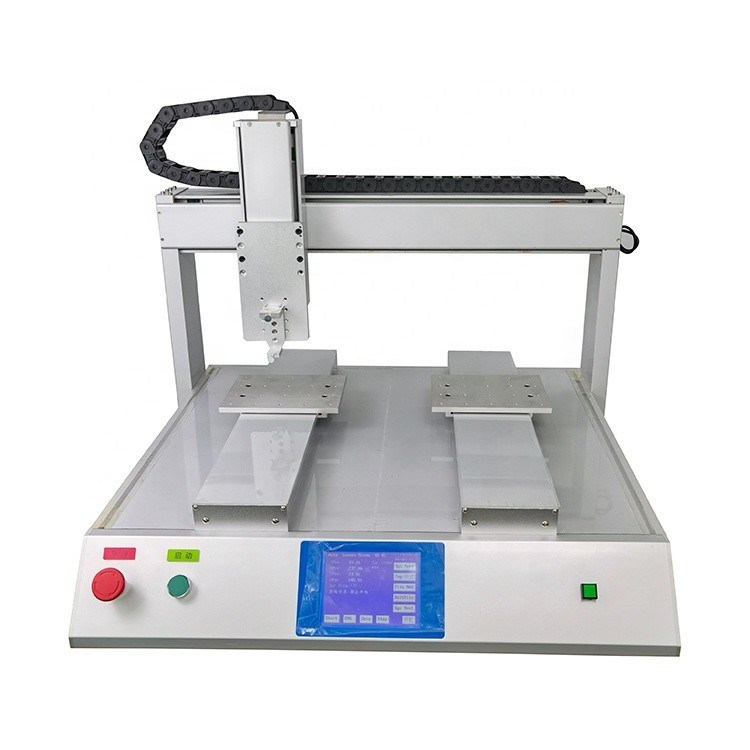

Pictures of Robot glue dispenser, automatic glue dispensing machine
