|Name:||PCB Lead Cutting Machine, PCB Lead Cutter After Soldering Process||Usage:||Cut Pcb Lead After Soldering Process|

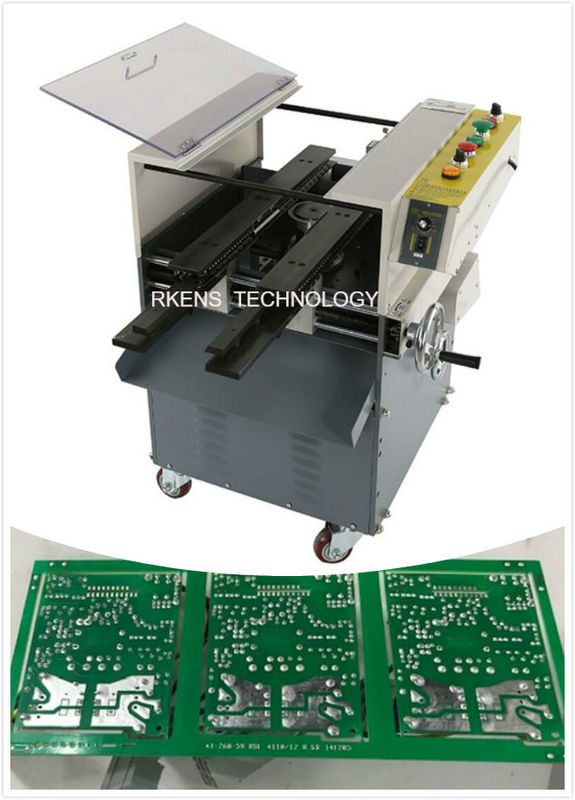

The Automatic PCB lead cutter machine is mainly used for cutting the extra pins of the components after soldering,this machine is assemblyed by precision manufacturing parts. The blade rotate fast and stability , at the same time it's very low noise and high efficiency.
Double rail travel can be adjustable Synchronize,cutting length is easily also adjustable.
To use the automatic PCB lead cutting machine, pcb should meet below requirement.
1. The pcb size should be within 400x250MM.
2. The PCB board side should have at least 2MM distance from components.
3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.
|Name||Electronic components PCB Lead Cutting Machine , PCB Extra Legs Cutter Machine|
|Power Supply||380V AC50HZ/60HZ|
|Shortest cut length||1.5MM Cut length is adjustable|
|Available PCB size||Max 400x250MM|
|Blade type||200MM Dia, And 250MM Dia for option|
1, Automatic input and output the PCB, cutting the PCB lead after the welding.
2, High stability, it can connect with the automatic soldering machine or AI machine.
3, Applies to the finger type slid to fasten the PCB board.
4, Finger slid change easy and economic.
5, With the prevent bending device, to overcome the bending PCB in welding.
6, Input speed can be adjusted, max. speed is 3m/min.
