YS-905L Guillotine Type Pcb Board Cutting Machine Circuit Board Shear 0.3-3.5 MM Cut Thickness

Guillotine Type PCB Depaneling Machine, Accurate PCB Depanel Machine

Intro:

Guillotine PCB depaneling machine is designed to depanel pre-scored PCB accurately without bending and tension stress.Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.

Suitable:

This pcb depanel machine is specially for seperating sophisticated thin SMD sheet and Aluminum PCB.

V-scored PCB

PCB thickness: 0.3-3.5mm

PCB length: unlimited length

Parameter:

Features:

1.The machine was designed to depanel pre-scored PCB carefully, without bending and tension stress.
2. Even sensitive SMD-Components like ceramic capacitors, will not be damaged by the depaneling process, or thin board even to 0.3mm can be worked safely.
3.D epaneling process without vibrations
4. PCB depaneling control method is by pneumatic-driven and electromagnetic valve
5. PCB control operation is that operator stamps the foot pedal to depanel PCB
6. Highest components near the v groove of PCB can be up to 50mm
7. Gap for insertion of PCB can be easy to adjust

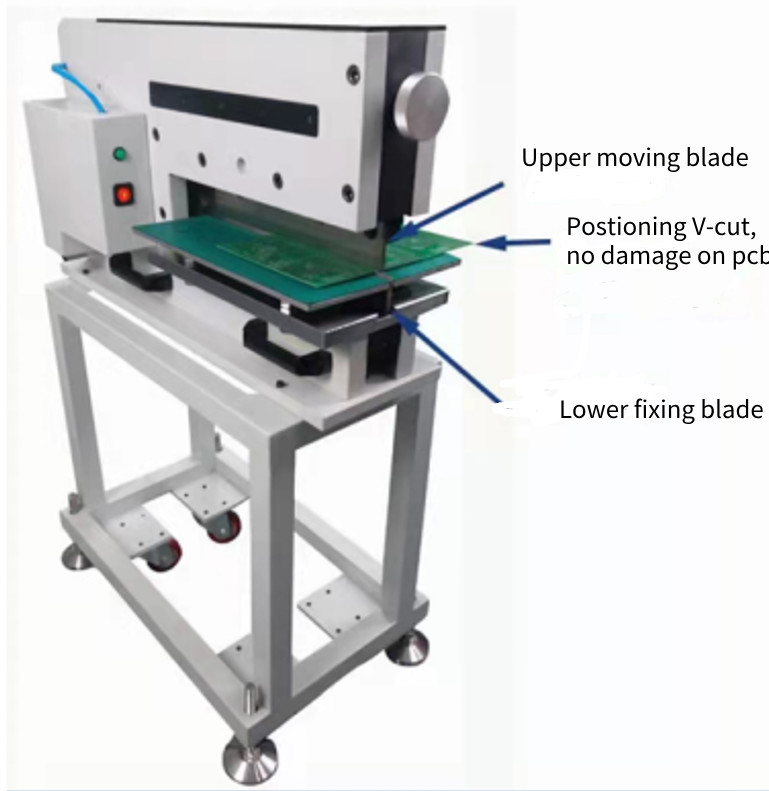

Pictures of Guillotine Type PCB Depaneling Machine, Accurate PCB Depanel Machine
