PCB depanel machine works for v-scored pcb separating. There is one lower linear blade and one uppder circular blade, put v-cut on the lower linear blade, and upper circular blade to separate PCBs. Fast speed and accurate cut without furr. No damge to PCB.
Optional feeding belt and safety light.
Suitable:
The PCB depaneling machine is suitable for V-cut pcbs within 400MM length.
Our PCB depanel machine models:

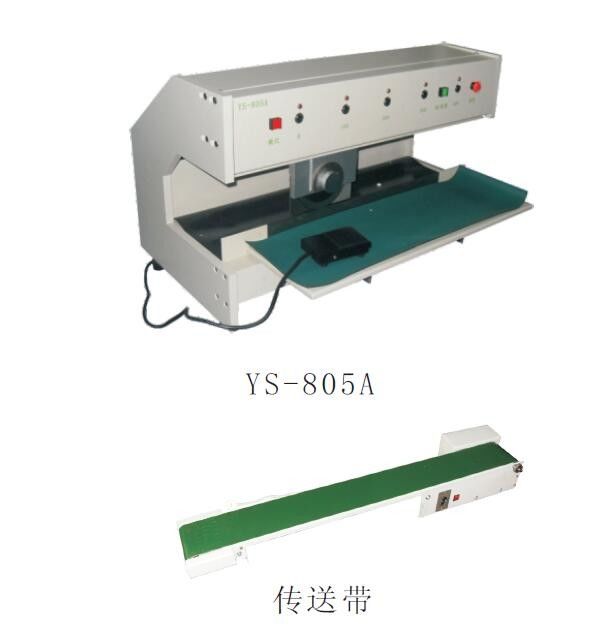

YS-805A for V-cut pcb within 400MM length
YS-805B for V-cut pcb within 600MM length
YS-805C for V-cut pcb within 900mm length
RS-720 for V-cut pcb with unlimited length
Parameter
Model
YS-805A
Model Blade Motion
Upper Circular Blade Moving Automatically
Cutting path
400mm
cutting thickness
0.5mm-3.2mm
cutting point
0-100-200-300-400mm
Cutting speed
300mm/sec or 500mm/sec
Upper circular blade
diameter 125mm,cutting point angle 26-28'
Lower blade
430mm long,max cutting length 400mm,cutter point angle 26-28'
Drive mode
Micro stepping motor + precise linear guaidway
Voltage
220v/110v,50/60hz,250w
Warranty
Three years for the pc board
One year for unit machine
Weight
60kg
Size
700*550*460mm
Features:
1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2.Effectively reduce stress and prevent solder point chap from PCB cutting.
3.PCB cutting speed can be adjusted by the rotary knob
4.PCB cuttingstroke can be set free and setting value can be showed in LCD
5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out
6.Optional PCB conveyor belt to remove finished PCB cut
Working principle
Fix the v-cut of the pcb on the lower blade, and the upper circular blade moves to cut the pcb. Clear cut, no damage to PCB.
Pictures of v cut High Quality PCB Cutter/Cutting Machine
Blade Moving To Separate/Cut PCBS
pcb depanelizer is packed by wooden case
Welcome to contact for more about our pcb depaneler, pcb depanelizer
Questions&Answer
1.What is the working principle for the pcb depaneling machine?
There are two blades for machine: Lower linear blade and upper circular blade. Put V cut of the pcb on lower linear blade, upper circular blade moves to separate pcbs.
2. What types of pcb can it separate?
Machine can only separate PCBs with v cut.
3. How long pcbs can it cut?
According to your pcb length, we have different machines for you. Such as YS-805A for pcbs less than 400MM length. YS-805B for pcbs less than 600mm length. JX-F300 for unlimited length of pcbs.
4.What is the voltage?
Machine is for 110V or 220V voltage. According to your country, we will convert voltage for you.
