Automatic Components Pin PCB Lead Cutter Cutting Machine
Intro:
The Automatic PCB lead cutter machine is mainly used for cutting the extra pins of the components
after soldering. It can Automatic input and output the PCB, cutting the PCB lead after the welding. Cut length is easily adjsutable, can cut shortest to 1.5MM.
Suitable:
1. The pcb size should be within 400x250MM.
2. The PCB board side should have at least 2MM distance from components.
3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.
Specification:
| Name |
Automatic Components Pin PCB Lead Cutter Cutting Machine |
| Model |
RS-911A |
| Power Supply |
380V AC50HZ/60HZ |
| Shortest cut length |
1.5MM Cut length is adjustable |
| Available PCB size |
Max 400x250MM |
| Efficiency |
4500 RPM |
Feature:
1. The eagle claw shrapnel clamp can nip PC boards tightly and push them forward automatically and stably.
2. The track board-delivery speed can be adjusted according to pins to increase the service life of the cutter.
3. As the principal axis rotates quickly, the machine works accurately and efficiently.
4. The crest pinprick ball and the bakelite press plank can reduce the error of lead-cutting of PC boards transformed during the tin soldering.

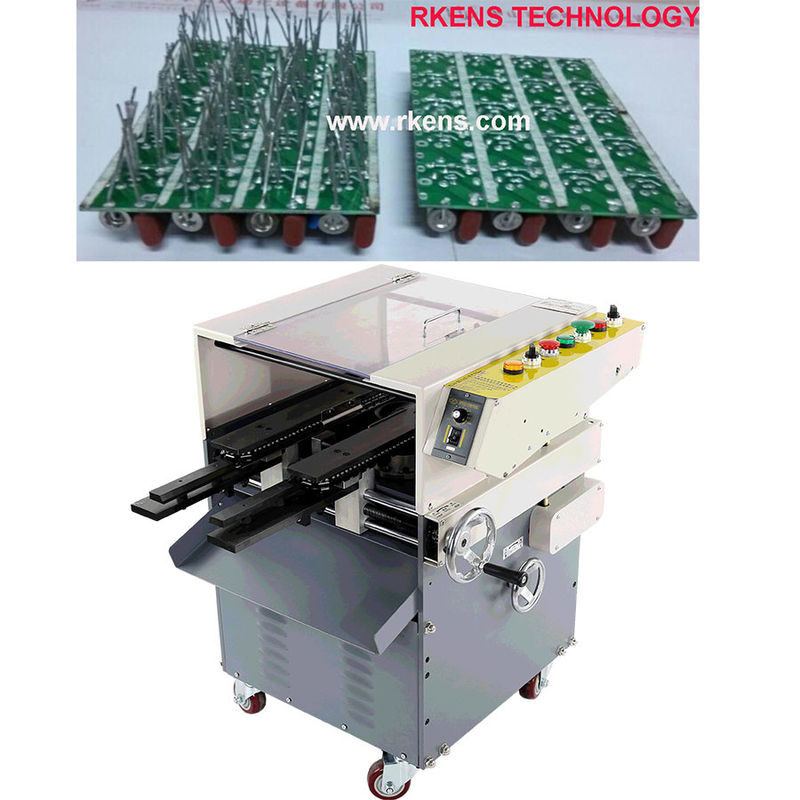

Before and after cutting pcb lead showcase
PCB lead cutter pictures
Datailed pictures of pcb lead cutting machine
Welcome to contact for more about our PCB components lead cutting machine, automatic pcb lead cutting machine
