Automatic PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter

Name: Automatic PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter
Brand: RKENS
SKU: RS-911A
Price: 1 USD
Availability: InStock
Rating: 4.8 (151 reviews)

Automatic PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter supplier

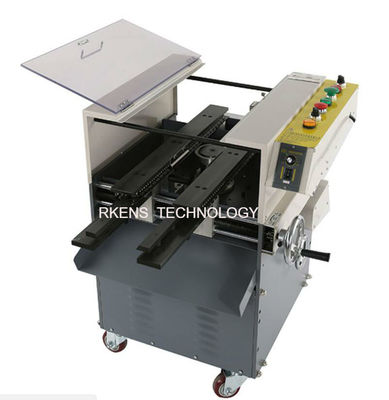

Large Image : Automatic PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-911A

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Packaging Details:	Wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, Western Union
Supply Ability:	200 SETS per month

Contact Now

Detailed Product Description

Name:	Automatic PCB Lead Cutting Machine After Soldering, Soldered PCB Lead Wire Cutter, Lead Cutter	Usage:	Cut Pcb Components Lead/leg After Soldering Process

Automatic PCB lead cutting machine after soldering, soldered PCB lead wire cutter, Lead Cutter

Automatic PCB Lead Cutting Machine , PCB Components Lead Trimming Machine

Intro:

The Automatic PCB lead cutter machine is mainly used for cutting the extra pins of the components

after soldering,this machine is assemblyed by precision manufacturing parts,also the key parts is finished through long time and careful research,using import bearing for assemblying the cutter,make sure all

works together. The blade rotate fast and stability,at the same time it's very low noise and high efficiency.

Double rail travel can be adjustable Synchronize,cutting feet also adjustable.

Suitable:

1. The pcb size should be within 400x250MM.

2. The PCB board side should have at least 2MM distance from components.

3. The shortest length machine can cut is up to 1.5MM. However if there is components on back side, lead length should be higher than components. For example, there is 3MM height components on bottom side, so after cutting, the lead length should be higher than 3MM. You can not cut lead length lower than 3.0MM.

Specification:

Name	Automatic PCB lead/leg cutting machine, pcb lead cutter
Model	RS-911A
Power Supply	380V AC50HZ/60HZ
Shortest cut length	1.5MM Cut length is adjustable
Available PCB size	Max 400x250MM
Efficiency	4500 RPM

Feature:

With Claw type spring clap, automatically feed and push pcbs, stable. Also can be connected with production line and Automatic soldering furnace.
Channel speed can be adjustable according to components size.Increase blades life.
Claw type spring clap on feeding channel can grip pcbs tightly, stable and strong pushing pcbs.
With Thimble thorn ball and bakelite pressure, can overcome distorted pcbs after being soldered.
Safety contact switch, very safe electronic equipment.
4500R/M, fast speed and high accuracy.
PCB feeding channel is specially dealt. Durable and wear resistant.
Blade spindle deflection is within 0.2mm.
10MM thick iron sideboard.No noise working, below 80-90DB.
Shortest cut length to 1.0MM.
PCB size should be within 400x250MM
