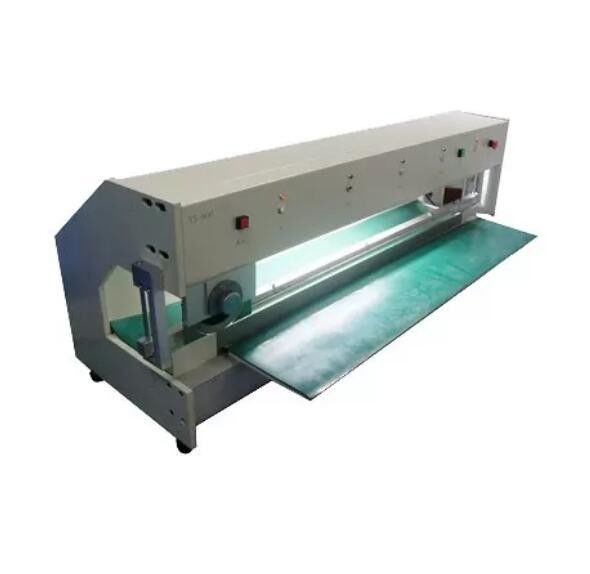

900MM Knife-Moving Type PCB Splitting Machine Aluminum PCB Cutting Machine

Intro:

YS-805C is a PCB Depaneling Machine for pcbs with v-cut, cut both small and large PCBs fast and economicaly. To optimize operation,the separation length can be programmed.

The PCB is placed with its pre-scored groove onto the linear blade,when the foot swith is pressed,the blade carrier with the circular blade moves across the PCB,separating it into individual units.

Suitable:

• Suitable for pcb, aluminum pcb, fiber panel with V-cut
• Available PCB thickness: from 0.2mm to 3.2 mm
• Available V-cut thickness: from 0.2mm to 2.0mm

Parameter

Features:

1,Microcomputer program control,precise positioning and good stability.

2,Blade moving speed is adjustable,500mm/s or 300mm/s. Speed can also be increased by modifying program.

3,Can fine adjust cutter wheel:0-2mm, to apply to PCB boards of different thickness and V-CUT of different depth. Can adjust height of operation desk:0-50mm.

4,Depth of black baffle is adjustable:0-150mm. Max cutting length is 1300mm. Max cutting thickness is 0.2-3.2mm,Max depth of V-CUT is 0.2-2.0mm.

5,Blade moving path,moving point and stopping point can be set according to length of PCB board.

6,Upper and lower blades are made of imported high- speed steel, long service life and can be sharpened for 7-10 times.

Dudrable blade , can be grineded.
