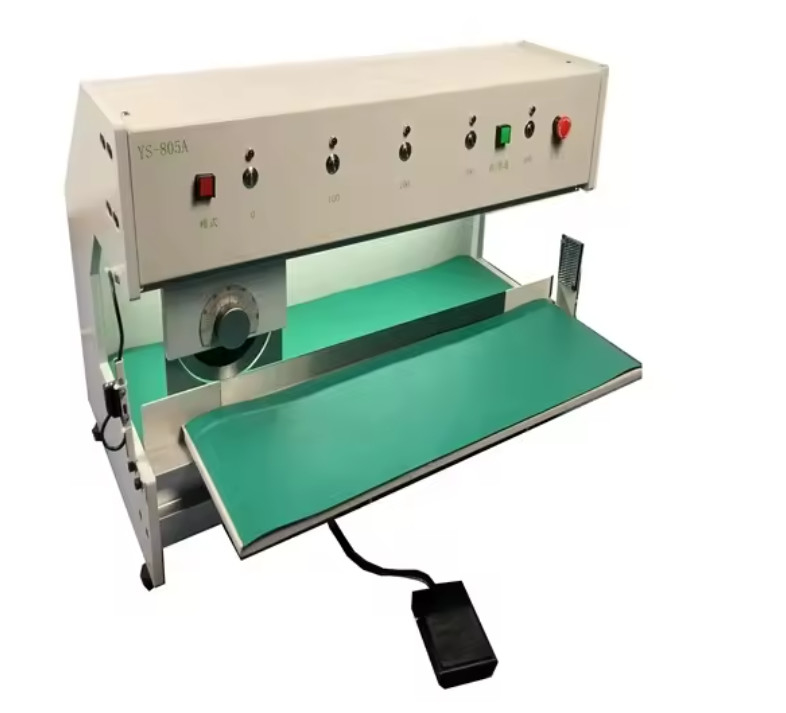

YS-805X is a motorized v cut pcb depanel machine. It can seprate big pcbs to smaller pieces. According to your PCB, we have machine with 400mm, 600mm and 900mm length.
V Cut PCB Depanelizer , V-scored PCB Separating Machine, PCB Cutting
It can cut v-cut pcb board to units. Suitable for pcb, aluminum pcb, fiber panel.
Available PCB thickness: from 0.2mm to 3.2 mm
Available V-cut thickness: from 0.2mm to 2.0mm
Maximum board length: Any length pcb is available, we have different models machine according to your pcb length.
Model | YS-805A | YS-805B | YS-805C |
Cutting Length | 0-400mm | 0- 600MM | 0-900mm |
Outer dimension(LxWxH) | 740x550X460mm | 900x550x460MM | 1200x550x460 |
Electric Load | AC220V 50Hz & AC110V/60HZ | ||
Electric Power | 250W | ||
Suitabe for | V-Groove PCB Board/Aluminum PCB | ||
Cutting Speed | 300mm/s 500mm/s Adjustable | ||
Package | Wooden box | ||
Weight |
Approx.60KG |
70KG | 80KG |
1. The nether linear blade is used to fix the PCB V-cut, the upper circular blade moves to separate the PCB. By pressing the foot-pedal to control upper circular blade.
2. Adopt step motor, can separate all kinds of V-cut PCB 3.Max separate length 1200mm (400mm, 600mm, 900mm, 1200mm is optional)
4. The stroke of the upper circular blade can preset. (Setting rang: Between any two groups of 0,100, 200,300,400mm)
5. Blade moving speed can switch between 300mm/s and 500mm/s.
6. The gap between two blades is easy to adjust
7. Operation is very safe, the circular blade is covered by material, avoid the blade hurting hand. Also can install a sensor, when hand or foreign matter enters into the working area, it will stop immediately.
8. Blade material is SKH7 from Sweden, long lifetime. During cutting, it can effectively decrease cutting stress to avoid welding spot cracking.
Machine operation video:
