0.5-16mm2 Tubular Ferrule Crimp And Wire Strip Machine RS-0540-16
0.5-16mm2 Tubular Ferrule Crimp And Wire Strip Machine RS-0540-16
Place of Origin
China
Brand Name
RKENS
Model Number
RS-0540-16
Product Details
Name:

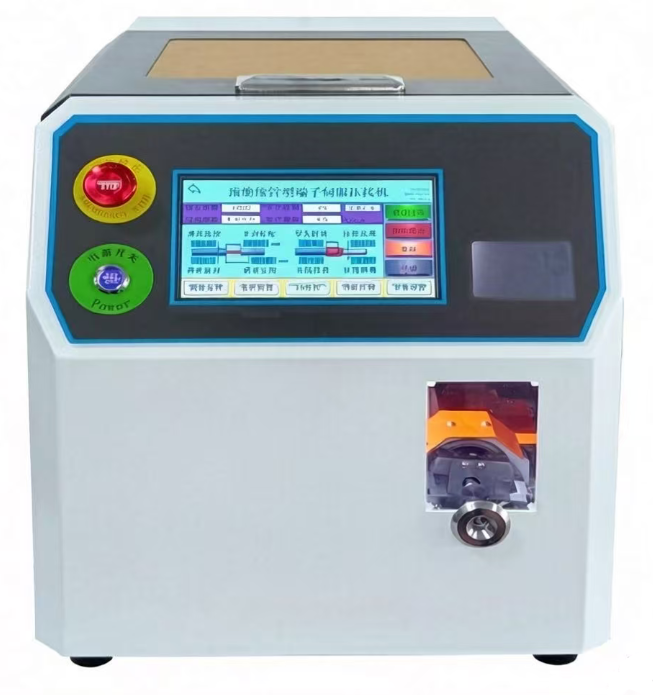

Wire Strip And Tubular Ferrule Crimp Machine
Applicator:
Square Applicator
Tubular Ferrule Size:
0.5-16sq.mm
Dipay:
LCD Touch Screen
Product Description
RS-0540-16 Wire Stripping And Tubular Ferrule Crimping Machine
This machine is a simple, efficient, cost-effective, and high-quality semi-automatic servo crimping machine for pre-insulated tubular ferrule terminals. It integrates vibratory feeder, electric wire clamping, electric stripping, servo twisting, terminal threading, and servo crimping; it features touchscreen operation, electric adjustment of the threading distance, and saved and directly recalled parameter settings.
Human-machine interface, electrical control, mainly electric and pneumatic combined to achieve integrated electrical control.
operating mode
The line-laying sensor can automatically trigger operation, while manual operation can also be used. A foot pedal start switch can be added.
Wire size specification
Applicable to most wires such as RV flexible wires, 10 specifications from 0.3 to 16 square millimeters (currently, materials and fixtures are required for wires smaller than 0.5 square millimeters).
Terminal specifications
0.5 to 16 square millimeters; terminal insulator length within 11 mm, conductor length within 20 mm.
Stripping and inserting
The stripping length is 6-30mm, and the position of the insertion into the rubber shell can be controlled by motor adjustment, freeing up the original mechanical limit adjustment.
Stripping method
Rotary stripping, parallel stripping, rotary twisting, and the direction can be forward or reversed.
Terminal supply
Vibratory feeder feeding, one tray can be used for 10 types of terminals, and only simple adjustments are needed to make it compatible with 10 types of terminals.
Crimp shape
Regular quadrilateral pressing, servo motor pressing, pressing height is adjustable;
The crimping shape can be customized with a special crimping mold.
Replace product
Manually replace relevant fixtures and adjust the vibratory feeder, select existing parameters, and control the recall of memorized parameters.
Production capacity
Approximately 3.2 seconds per terminal, the exact time may vary depending on the wire material (considered as a single machine cycle). For manual operation, it is approximately 4 seconds per terminal (depending on the wire material).
Detect alarm
Terminal presence detection, and various other operational tests.
power supply
Power supply AC220V/50Hz (single phase) 10A: Internal power supply DC24V, DC30V, AC30V: Total power 1500W.
Air source
0.5-0.6 MPa (Please use a stable, clean, and dry gas source).
Working temperature and humidity
0~35℃ (ambient temperature of machine operation), 30~80%HR (non-condensing).
Dimensions and weight
W360mm (front width) × L520mm (front and rear depth) × H425mm (height) (excluding protrusions), weight approximately 62KG.
Features:
1. Primarily electric with pneumatic options for versatility.
2. Fully enclosed design with a compact mechanical structure.
3. Highly flexible and safe operation.
4. Automatic triggering or foot switch start-up for quick and convenient use.
