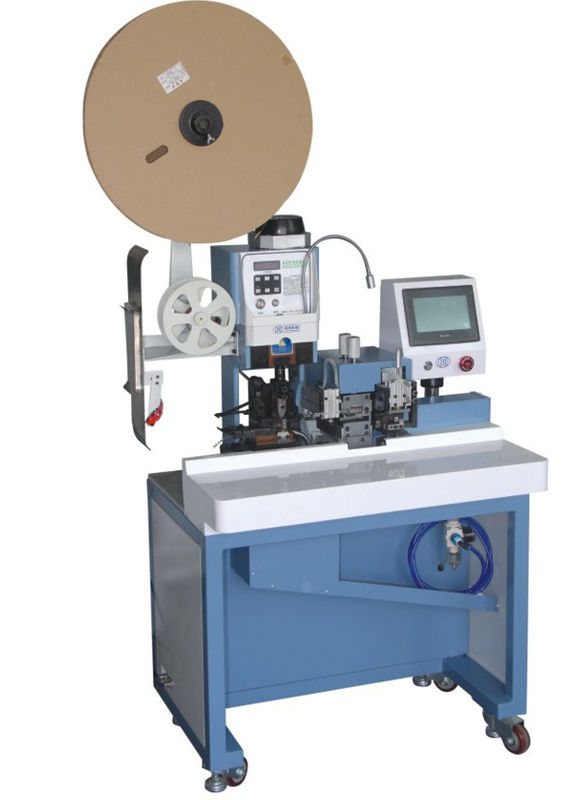

Multi-core Cable And Ribbon Cable Stripping And Crimping Machine
Intro:
This machine is for 0-20 multi-core cables, and ribbon cables. Stripping and crimping can be finished at same time. The stripping parts and crimping parts are sepated. Applicator can be changed easily. Stripping depth can be adjusted.
Suitable:
It works forstripping and crimping flat ribbon cables, multi-core cables.
Parameters:
Model | RS-6800 multi-core cable, ribbon cable stripping and crimping machine |
Power Supply | 220V 50HZ/60HZ |
Rated Power | 0.75KW |
Size | L690xW450XH1250MM |
Weight | 118KG |
Available wires | Multi-core cables with 0-20 cores, ribbon cable, electric wires |
Strip length | 0-25mm |
Press stroke | 30MM |
Press capacity | 2.0T |
Suitable Applicator | Vertical or horizontal applicators |
Features:
1. Stripping and tapping terminals are completed at one time, which is convenient and fast. It adopts frequency conversion control to achieve soft start and soft stop without mechanical loss.
2. The cassette die and stripping parts are independent, the card die can be replaced easily, the stripping depth can be adjusted, and the production adaptability is strong.
3. Independent peeling, riveting terminal operation, automatic and manual operation, and each action time can be adjusted according to the specifications of the wire and the terminal.
4. The whole machine adopts PLC program control, man-machine interface 7-inch touch screen, pneumatic and air valve, durable.
5. Proprietary dander recovery device, clean operation.
