Mute Back-Feed Terminal Wire Cable Stripping And Crimping Machine RS-3000T

Mute Back-Feed Terminal Wire Cable Stripping And Crimping Machine

Intro:

RS-3000T is mute wire stripping and crimping machine for back-feed terminals on tape and reel. Wire insulation stripping and terminal crimping can be finished at same time.

It is suitable for multi-core data cables, power cords and other multi-core sheathed wires. The machine strips wires driven by a pneumatic cylinder, with fast action speed and accurate positioning. The scrap after stripping adopts vacuum suction method, which is clean, convenient and simple.

Machine video:

https://youtube.com/shorts/HrQDgR4K_uM?si=3r8Ol4HeyYI_Sc5O

https://youtube.com/shorts/fP-WxkmqbhA?si=kX6JQ3-wSLeggz2U

Suitable:

Back-feed terminals on tape and reel.

Suitable for multi-core cables, electric wires, PC cable cores,  USB cable, flat ribbon cable, etc

Parameters:



① It integrates wire stripping and end-tying operations into one continuous operation. It adopts frequency conversion control to achieve soft start and soft stop without mechanical loss.



②The cassette mold and peeling mechanism are independent, the cassette mold is easy to replace, and the peeling depth is adjustable and has strong production adaptability.



③It can be peeled and riveted independently, and can be operated automatically or manually. The time of each action can be adjusted according to the specifications of the wire and terminal.



④ Equipped with a scurf recovery device to ensure clean operation.

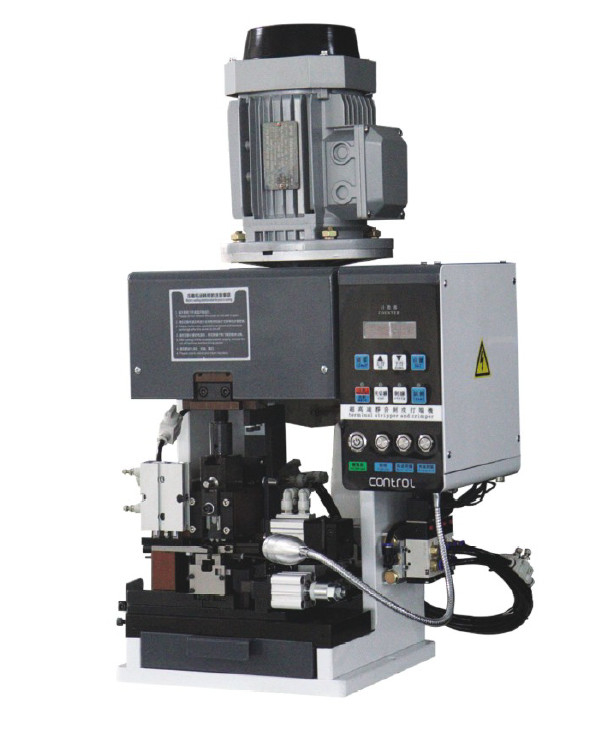

Wire stripping and crimping machine detail





Strip and crimp samples
