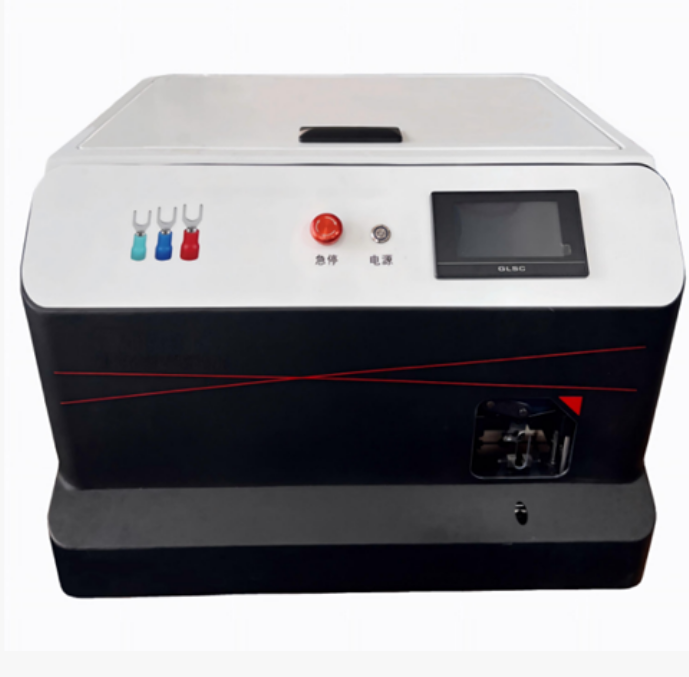

High efficiency Insulated fork ring terminal strip and crimp machine RS-0542

Name: High efficiency Insulated fork ring terminal strip and crimp machine RS-0542
Brand: RKENS TECHNOLOGY CO.,LTD
SKU: RS-0542
Availability: InStock

Place of Origin	China
Brand Name	RKENS
Model Number	RS-0542

Product Details

Name:

Insulated Terminal Strip And Crimp Machine

Suitable:

For Loose Insulated Fork And Ring Terminals

Wire Size:

‌1.25-6 Mm²

Strip Length:

1.0-18mm

Product Description

High efficiency Insulated fork ring terminal strip and crimp machine RS-0542

Intro:

This strip and crimp machine is suitable for loose insulated ring terminals, insulated fork terminals. Stripping and crimping can be finished at same time.

It is operated by atuoamtic triggering and manual model.

Specification:

Control Method	Integrated electrical control via human-machine interface, electronic control, electric, and pneumatic systems.
Operating Mode	Automatic triggering via wire release induction and manual operation.
Wire Size	‌1.25mm² to 6 mm²
Stripping Length	For multi-core cable, outer jacket strip length: >=35mm
Processing Dimensions	Stripping length 1.0mm-18.0mm, cutting error 0.1mm-0.15mm, position error 0.1mm-0.15mm
Product Changeover	Manual replacement of relevant fixtures and adjustment of the vibratory feeder; electric memory for stripping length and depth.
Processing Capacity	1400-1500 PCS/H
Inspection Items	Terminal presence detection, right-side safety door opening detection, and various other operational tests.
Power Supply	Single-phase 200V~240V 50/60Hz; total power 1200W.
Air Supply	0.4~0.6mpa (Please use dry and clean air).
Operating temperature	0～35℃ (ambient temperature)
Operating humidity	30～80%HR (non-condensing)
Dimensions	L600mmW590mmH430mm (excluding protrusions)
Weight	Approx. 75KG

High efficiency Insulated fork ring terminal strip and crimp machine RS-0542 0
