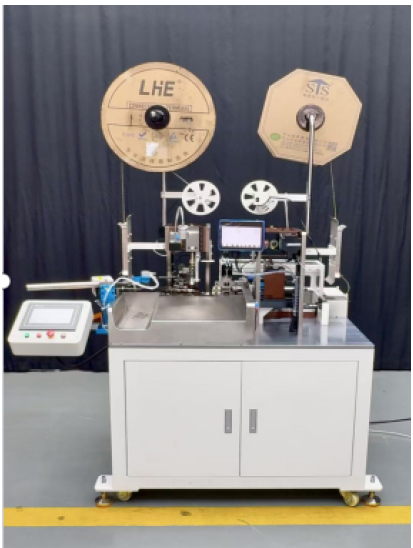

RS-01A Precision Double-Head Servo Terminal Crimping Machine
ONE. Machine Specifications:
Product Name: RS-01A Precision Dual-Head Servo Terminal Crimping Machine
Weight: 500kg
Storage Space: 3 square meters
Display: Chinese and English touchscreen LCD
Power Supply: AC220/50Hz
Power: 3000W
Working Air Pressure: 0.4mpa-0.8mpa (dry air)
Crimping Capacity: 3T
Function: Cuts, strips, and crimps wire to length with dual-end terminals
Applicable Wires: Electronic wire, high-temperature wire, halogen-free wire, Teflon wire, etc.
Production Capacity: 3200-3500 wires/hour per 100mm length
Applicable Wire: 32#-12#
Wire Cutting Length: Minimum total wire length for standard machine is 27mm
Stripping Length: Standard machine allows for a front strip within 15mm and a rear strip within 15mm
Cutting Accuracy: Within ±0.1 (0.1 + 0.005 * L) mm, where L = cutting length
Stripping Method: The forward and reverse screws independently complete the peeling (Xinjie servo motor)
Applicable Die: Universal for side-feed and back-feed applicators
Dimensions: Length 1260*Width 900*Height 1400MM (excluding raised mounting area)
TWO. Machine configuration
Wire feeding method: Xinjie servo motor, 4-wheel wire feeding
Translation mode: Xinjie servo motor for front and rear translation XY axes
Drive structure: Precision lead screw, Hiwin guide rails, synchronous belts, etc.
Terminal machine: Xinjie servo terminal machine
Detection device: Wire knot and missing detection, paper collection detection, air pressure detection
Auxiliary devices: Terminal cutting waste leakage device/rubber waste collection device, paper collection device, air pressure buffer tank
Optional equipment: Terminal pressure monitoring system
