Mute Side-Feed Wire Stripping And Crimping Machine RS-1500H
  • Mute Side-Feed Wire Stripping And Crimping Machine RS-1500H

Mute Side-Feed Wire Stripping And Crimping Machine RS-1500H

Place of Origin China
Brand Name RKENS
Model Number RS-1500H
Product Details
Name:
Wire Stripping And Crimping
Usage:
Strip Wire , Press Terminals
Product Description

Intro:

RS-1500H  is an excellent solution for customers looking for a simple, low-cost stripping and crimping press. The wire crimping stripping machine can deliver up to 1.5Ton of crimping force.

  • Simple design that is very easy to use.
  • Extremely cost effective
  • High quality results
  • Stripping and crimping terminal same time
  • For power cable, and multi-core cable.

Suitable:

Various type of taped terminals, such as tape and reel vertical/horizontal terminals. We can provide applicator for hoziontal tape terminal, vertical tape terminal.

Note: This machine works for only terminals on tape and reel



Parameters

According to your wire and teminals, we can select a suitable machine for you.



Model RS-1500H Mute Wire Stripper And Crimper RS-2000T Wire Stripper and crimper
Press capacity 1.5 ton 2.0 ton
Air Supply 0.3-0.4Mpa 0.3-0.4Mpa
Strip length 1-10mm 1-7mm
Stroke 30MM 50MM
Appearance size 530×400×830mm 530×400×830mm
Weight 70KG 80KG
Power supply AC220V 50/60Hz AC220V 50/60Hz



Features

  • Automatic high speed super mute terminal crimping machine. The machine is easy to operate and repair, which is designed for high output and low maintenance.
  • With frequency conversion technology, electronic precision positioning, noise is smaller than traditional terminal machine when it works. Power saving, convenient and easy to adjust mold
  • Can be equipped with different die/applicator. And easy to change

Note: We can customize applicator and blade according to customer's terminals.

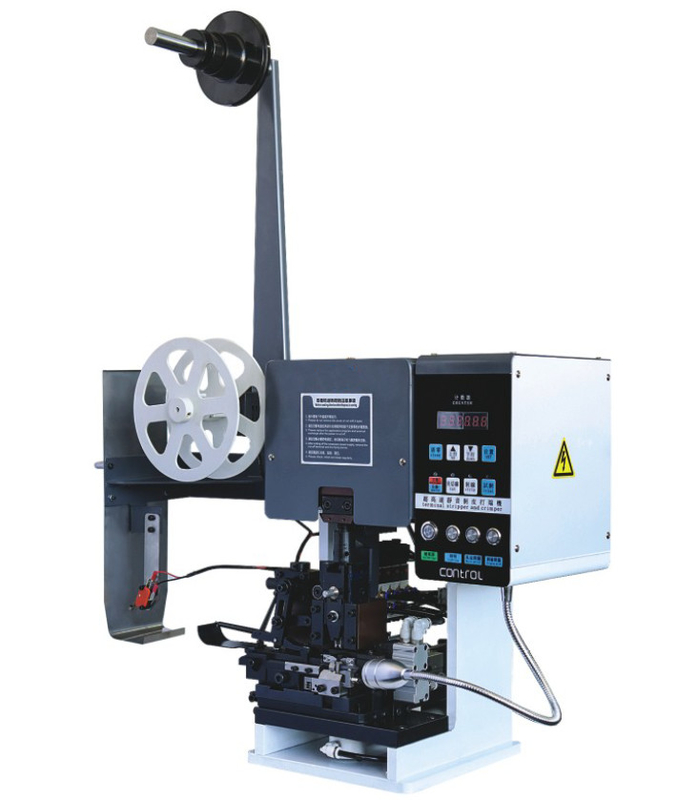

Pictures of mute wire terminal stripping crimping machine





Mute Side-Feed Wire Stripping And Crimping Machine RS-1500H 0

Mute Side-Feed Wire Stripping And Crimping Machine RS-1500H 1




Machine video:
