Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine
  • Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine

Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine

Place of Origin China
Brand Name RKENS
Model Number RS-005
Product Details
Product Description

Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine



Intro:

This machine can cut wires, strip both ends, one-end twist and dip tin solder, another-end press terminals and insert the plastic housing connectors. This is a full automatic machine. All process can be finished by one machine.
Note: This machine is customized. You can not change termials and connectors.

Machine video:  https://youtu.be/bbb-Sh8slEI

Parameters:
Function Wire cutting, single-end stripping, single-end termination, single-end plastic housing; the other end is half-stripped/fully stripped, twisted, and tinned
Power Supply Power supply: AC 220V/110V 50 / 60HZ
Optional Feature CCD detection, pressure detection, twist wires together
Detect function Whether there are wires, whether the wires are knotted, whether there are terminals, whether there are plastic shells, air pressure alarm, motor abnormality, etc.
Speed 8000-9000 terminal quantity
Cut length 30MM-800MM (can be customized)
Air Source 0.6-0.8MPa (clean and dry air source is required)
Available Wire 32AWG-18AWG
Rear Side Strip length 1-9MM (half or full stripping)
Dip Tin length 1MM-9MM
Size 3800 × width 1800 × height 2200 (MM)
Weight about 550kg (gross weight after packing the wooden box: about 760KG)





Features:

  1. The integration of automatic wire feeding, cutting, peeling, twisting, end punching, shell insertion and quality monitoring has been realized;
  2. A variety of plastic shells only need to replace a few modular replacement fixtures, which is simple and convenient;
  3. It is suitable for the processing of various wire materials such as electronic wire, flat wire, parallel wire, halogen-free wire, silicone wire, Teflon wire, braided wire, etc.
  4. Suitable for 1.0 terminal, 1.25 terminal, 1.5 terminal, PH, XH, VH series terminal, etc.;
  5. Servo control, pneumatic components, guide rails, etc. use world-renowned brands to ensure the overall performance of the equipment is stable;
  6. Optional terminal pressure management device, CCD visual image system, easy operation and quality assurance;
  7. Adopting touch screen man-machine interface, parameter adjustment is convenient, operation is simple and flexible;
  8. With strong research and development capabilities, it can intelligently upgrade and expand equipment functions.

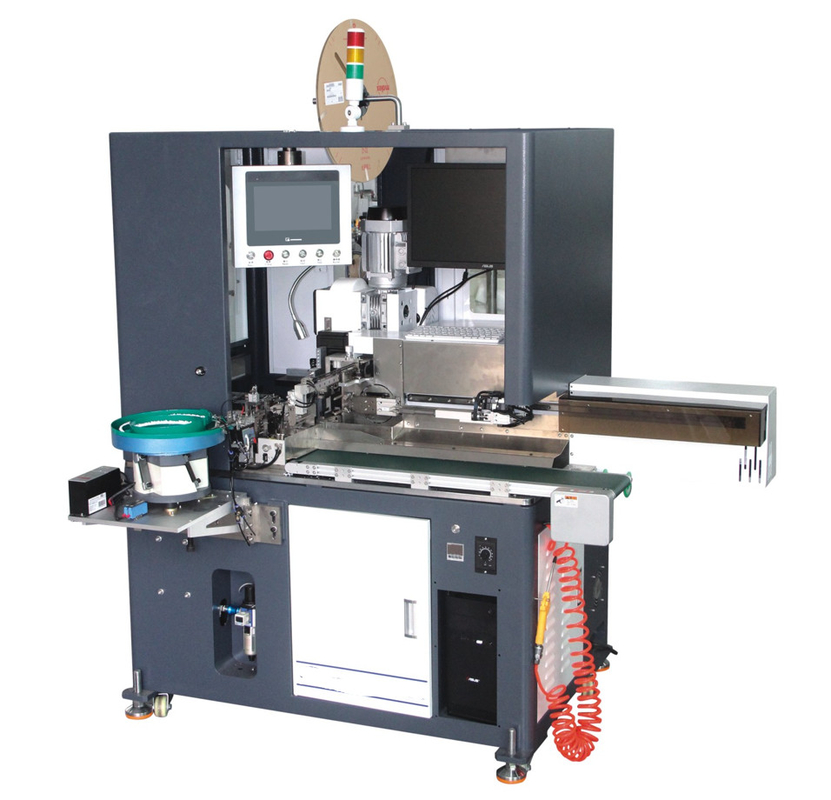

Auto One-end Terminal Crimping And Inserting Connector Machine, Wire Cutting Stripping Tinning Machine 0
