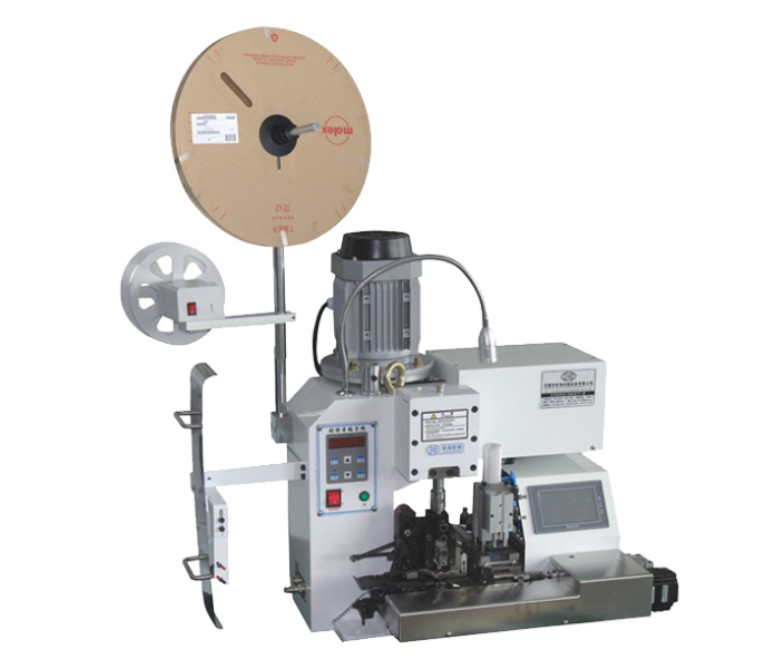

Multi-Conductor Cable Stripping And Stripping Machine RS-6800G

China Multi-Conductor Cable Stripping And Stripping Machine RS-6800G supplier
Multi-Conductor Cable Stripping And Stripping Machine RS-6800G supplier

Large Image :  Multi-Conductor Cable Stripping And Stripping Machine RS-6800G

Product Details:

Place of Origin: China
Brand Name: RKENS
Model Number: RS-6800G
Detailed Product Description
For: Multi-core Cable, Ribbon Cable Usage: Strip And Crimp

Multi-Conductor Cable And Ribbon Cable Stripping And Terminal Pressing Machine


Intro:

Stripping and terminals crimping is completed at one time, which is convenient and fast. It adopts frequency conversion control to achieve soft start and soft stop. No mechanical loss. The cassette mold and peeling parts are independent, the cassette mold is easy to replace, the peeling depth is adjustable, and the production adaptability is strong.



Suitable:

0-20 core sheathed cable, flat cable , Electronic line, parallel line

Stripping and crimping





Parametes:

Model Multi-core cable and ribbon cable strip crimp machine RS-6800G
Power supply 220V, 50HZ/60HZ
Power 0.75KW
Size L850 x W450 x H680mm (without protrusions)
Weight 105KG
Suitable wire 0-20 core sheathed cable, flat cable , Electronic line, parallel line
Strip length 15-30mm
Stroke 30mm
Press capacity 2.0T
Suitable applicator OTP horizontal feed , Direct vertical feed
Capacity 1200 pieces/hour
Auxiliary function paper product and scrap cutting device




Features:

1. Stripping and tapping terminals are completed at one time, which is convenient and quick. It adopts frequency conversion control to realize soft start and soft stop. No mechanical loss.

2. The cassette die and stripping parts are independent, the card die can be replaced easily, the stripping depth can be adjusted, and the production adaptability is strong.

3. It can be peeled independently, but the terminal can be pressed. It can be operated automatically or manually, and each action time can be adjusted according to the specifications of the wire and the terminal.

4. The whole machine adopts PLC program control, man-machine interface 7-inch touch screen, pneumatic and air valve, durable.

5. Proprietary dander recovery device, clean operation.



Stripping and crimping samples



Multi-Conductor Cable Stripping And Stripping Machine RS-6800G



Machine video:
