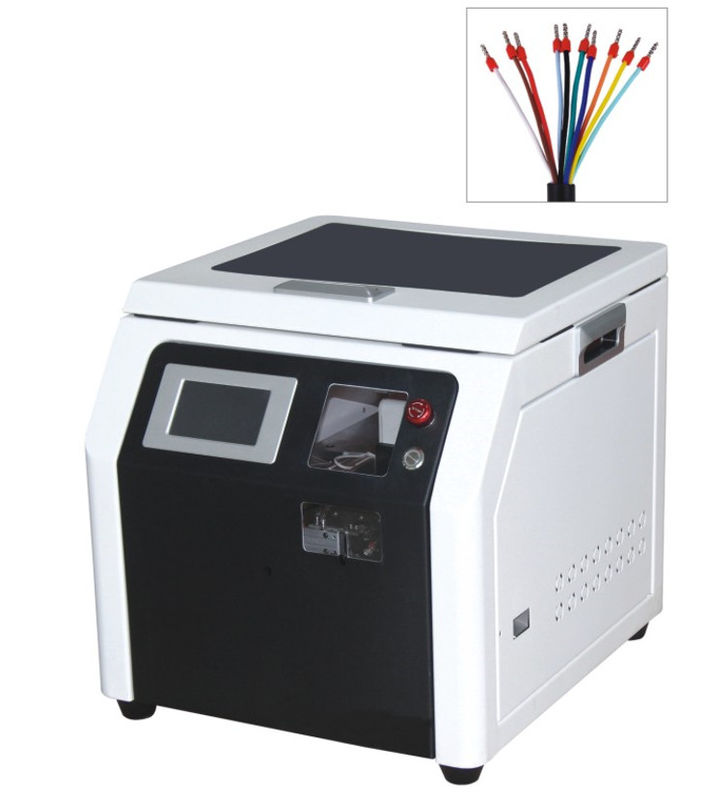

RS-0540 Insulated Tubular Terminals Ferrule Pressing And Crimping Machine
  • RS-0540 Insulated Tubular Terminals Ferrule Pressing And Crimping Machine

RS-0540 Insulated Tubular Terminals Ferrule Pressing And Crimping Machine

Place of Origin China
Brand Name RKENS
Model Number RS-0540
Product Details
Name:
Insulated Tubular Terminals Pressing Machine
Applicator:
Square Applicator
Product Description

Insulated Tubular Terminals Pressing Machine



Intro:

This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding.

It is a semi-automatic type press machine, manually putting wires.



Suitable:

Machine is for tubular ferrules with 0.5-4mm2 (Length should be within 12mm)





Parameters:



Model RS-0525 Insulated Tubular Terminals Pressing Machine
Specification

0.5mm -4mm2 insulated ferrules

Detect device terminal supply detection,device lack
Drive Mode Driving mode motor/imported ball screw control method
Control Mode ouch screen and programmable controller,MOONS drive
Wire Clamping device Wire clamping device motor drive, clamping force program control
Crimping Device motor drive, crimping force program control
Storage capacity 100 kinds of cable crimping data
Pneumatic device Pneumatic device SMC solenoid valve, SMC cylinder
Power supply 220V, 50HZ/60HZ
Gas source 0.6~0.8Mpa (please use clean and dry air source)
Size L450mm * W350MM * H425mm
Weight About 68KG



Features:

1. Enclosed design of the whole machine, safe and reliable operation;

2. Touch screen operation, electric adjustment of stripping depth and length, setting parameters save;

3. Automatic terminal supply, electronic four-side crimping (square), no need to replace crimping die

4 , Quick and automatic trigger, fast and convenient;

5. Semi-automatic operation, manual pay-off;

6. Automatic induction, peeling, terminal threading, crimping terminal, automatic feeding.



RS-0540 Insulated Tubular Terminals Ferrule Pressing And Crimping Machine 0





Machine video:
