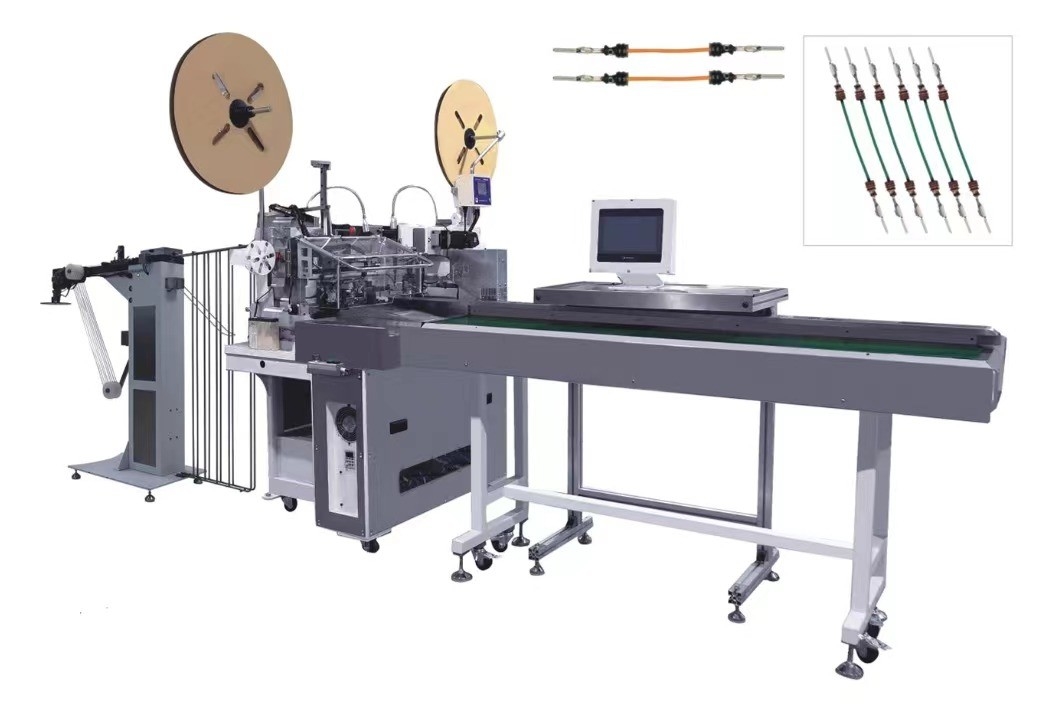

RS-8802F Fully Automatic Double-Head Waterproof Plug Inserting And Crimping Machine

RS-8802F Fully Automatic Double-Head Waterproof Plug Inserting And Crimping Machine

Intro:

RS-8802F is a 2-sided waterproof plug inserting and crimping machine. It integrates wire cutting, stripping, waterproof plug insertion, crimping terminals, wire twisting and other functions. The waterproof plug is automatically fed through the feeding system. The method of inserting the waterproof plug first and then stripping the wire completely eliminates the possibility of the copper wire tipping over, greatly improving the accuracy and stability of inserting the waterproof plug.

Spcification:

Model: RS-8802F fully automatic double-head waterproof plug insert and  double-head crimp machine

Maximum processing capacity: 2000-2500PCS/hour (depending on the material)

Applicable wire diameter: 0.2-2.5mm²

Cutting length: 35-9999mm (set in 1mm units)

Cutting processing accuracy: within ±0.1 (0.1+0.005L) mm, L = cutting length

Peeling length: 0-15mm

Pressing capacity: 2.5T

Crimping braking method: servo crimping

Display language: Chinese/English

Supply power/air: 3-phase 220V within ±10% (50/60HZ), 0.5Mpa150 (ANR)/min

Body size: length 1200×width 1100×height 2300 (mm)

Body weight: 525KG

Applicable line types: AV/AVS/AVSS/CAVUS/KVKIV/UL

Waterproof plug insertion: Waterproof plug (double-ended/single-ended) insertion

Features:

The precision fully automatic double-head waterproof plug end-penetrating machine adopts Mitsubishi servo motor and ball screw drive, and uses Mitsubishi control system, which makes the positions of wire feeding, stripping, end-penetrating, double-penetrating waterproof plugs very accurate, and the actions between them are smoothly connected, and the speed can reach 2500 pieces/hour; the machine operation is simple and convenient, all operated by touch screen, and data adjustment can change the stripping and cutting length, cutting depth, end-penetrating position, etc., saving time for the machine adjuster; the automatic detection function of the machine can also effectively control the occurrence of defective products, so that they can be discovered and processed immediately;

This is a processing machine that brings you safety, efficiency and precision. (Can be customized according to requirements)
