RS-150P 150sqmm and 240sqmm Big Cable Cutting And Stripping Machine
  • RS-150P 150sqmm and 240sqmm Big Cable Cutting And Stripping Machine

RS-150P 150sqmm and 240sqmm Big Cable Cutting And Stripping Machine

Place of Origin China
Brand Name RKENS
Model Number RS-150P/ RS-240P
Product Details
Name:
Big Cable Cutting And Stripping Machine
Suitable For:
For 150sqmm And 240sqmm Cables
Usage:
Cut And Strip
Language:
English
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
carton box or wooden case
Delivery Time
5-7 days
Payment Terms
T/T
Product Description

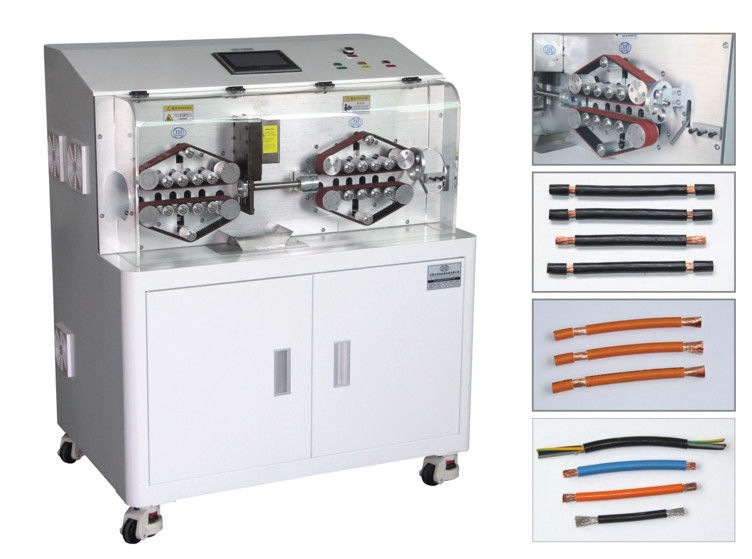

150sqmm and 240sqmm Big Cable Cutting And Stripping Machine

Intro:

The machine is driven by 8 wheels. It is specially for cutting and stripping big cables up to 150sqmm and 240sqmm. This machine is mainly aimed at the electric power industry, electric control cabinets, battery box wires, new energy vehicle wiring harnesses, charging pile wiring harnesses, charging gun wiring harnesses, BV hard wires, BVR flexible wires, etc. The entire roll of wires can be as long as required.



Suitable:

RS-150P is for 6-120sqmm cables.

RS-240P is for 6-1240sqmm cables.



Specification:

Model RS-150P large cable cutting and stripping machine RS-240P large cable cutting and stripping machine
Power supply AC220V 50/60HZ AC220V 50/60HZ
Cut length 60-99999mm 60-99999mm
Front end strip length 0-500mm 0-500mm
Rear end strip length 0-250mm 0-280mm
Conduct diameter 16-32mm 16-32mm
Wire size 6-120sqmm 6-240sqmm
Speed 1200-2000pcs/H 500-800pcs/H
Power 1500W 2300W
Driving Mode 8-wheel independent driving, mute servo motor 8-wheel independent driving, mute servo motor





Feature:

1.8 wheels are driven at the same time, driven by a servo motor, to ensure more efficient operation! faster!

2. The output is 2-3 times that of ordinary wire stripping machines! Save a lot of labor!

3. The product is suitable for the processing of large power cables, electric cables, sheathed wires, and soft and hard wires



Machine video:
