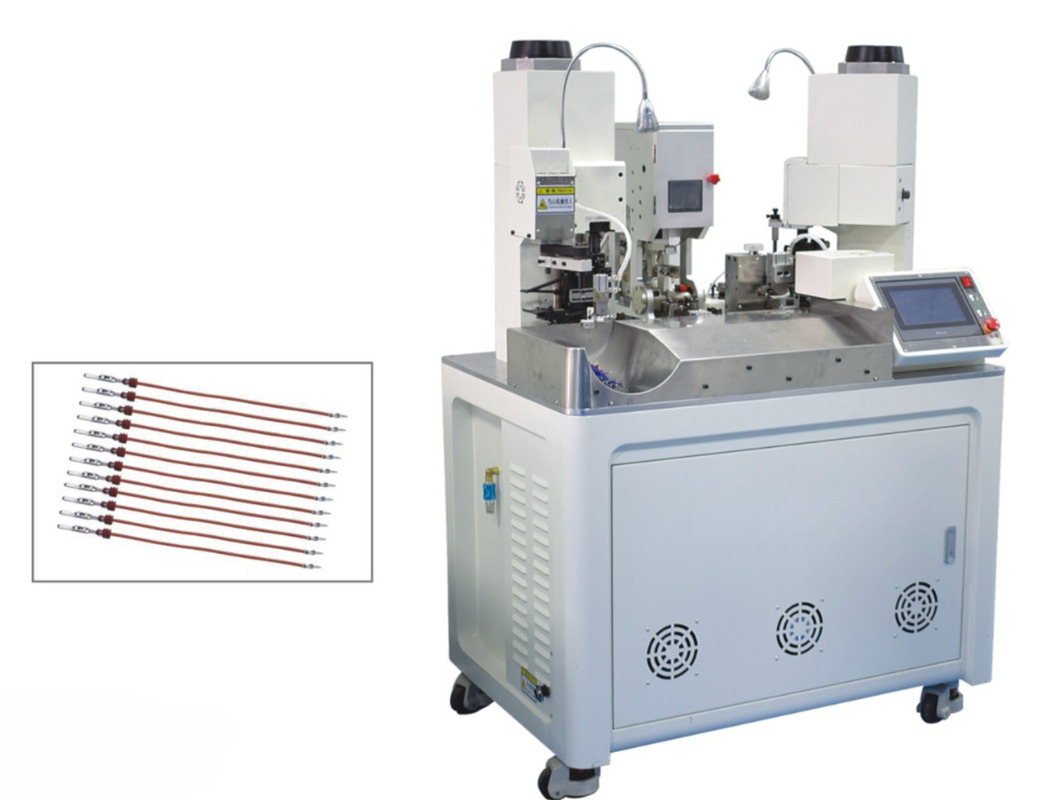

RS-8801F Fully automatic single-side insert waterproof plug double-side crimp machine

RS-8801F Fully automatic single-side insert waterproof plug double-side crimp machine

Intro:

This is an automatic double-side crimping terminal and single-side inserting waterproof plug machine. It has functions: wire cutting, stripping, inserting waterproof plugs, and crimping terminals. The waterproof plug is automatically fed through the automatic feeding system. One machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture, and the product switching can be completed within a few minutes.

Spcification:

Model: RS-8801F fully automatic single-head waterproof plug inserting and  double-head crimping machine

Power supply: AC220V 50/60HZ

Function: wire cutting, single-end stripping, double-end stripping, double-end crimping, single-end wearing waterproof plug

Production capacity: 2800 pieces/hour (length within 100mm)

Processable wire range: AWG#28-AWG#16

Cutting length: 50mm--9999mm

Cutting accuracy: Variation range: 1mm + cutting length "0.2% or less

Peeling length: 1.5mm--10mm

Crimping capacity: 2.0T terminal machine

Air pressure: 0.6-0.8MPa (need to use clean and dry air source)

Detection device: Detection of presence of wires, detection of terminal crimping, detection of blocked wires, low air pressure detection

Body size: 800W×1000L×1500H (mm double-ended single-pressure waterproof plug)

Body weight: about 440kg

Features:

1.LCD touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as cutting length, stripping length, inserting waterproof plug position, crimping position and other parameters can be set in the program.

2. Each functional module can be freely opened or closed in the program, for example, inserting the waterproof plug can be closed , and machine will be adouble-sided automatic terminal crimp machine.

3.The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.
