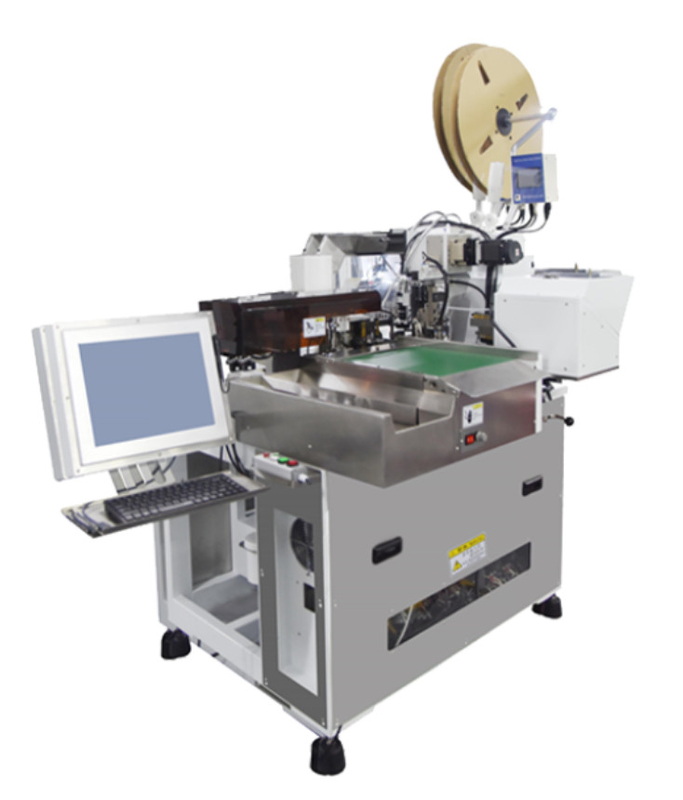

RS-8801DFS Fully Automatic Single-Side Wire Stripping Tinning And Connector Seal Crimping Machine

RS-8801DFS Fully Automatic Single-Side Wire Stripping Tinning And Connector Seal Crimping Machine

Intro:

RS-8801F is a fully automatic single-side twisting, tinning and waterproof plug sealing crimping machine. It can One end twists the wire and tin, and the other side inserts the waterproof plug and crimps terminal. The waterproof plug is fed by the automatic feeding system. One machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture. The whole machine has compact structure, small footprint, strong versatility, and high cost performance.

Specification:

Model: RS-8801DFS

Function:  one end is inserted into the crimping terminal of the waterproof plug, and the other end is twisted and tinned

Cutting range: 50~9999mm

Processing tolerance: within plus or minus 0.1 (0.1+0.005*L) mm L = cutting length

Applicable wire diameter: AWG#18---AWG#28

Applicable terminals: Reel side-feed and back-feed terminals; the longest front end is 15mm

Pressing force: 2Ton

Braking method: servo drive/inverter drive

Power supply: AC220V, 50/60HZ   single phase; 15A

Air pressure: 5kg/cm2

Features:

1. The cutting length and peeling length can be input directly on the touch screen, and the set data can be seen intuitively.

2. Wide parameter settings to meet the needs of various processing wires.

3. The automatic machine is equipped with sensors in key parts, which can automatically shut down when a fault occurs.

4. The servo motor adopts foreign brands, with high positioning accuracy and high production efficiency.

5. Easy to replace, the waterproof plug structure can be replaced quickly, and it takes less time to replace the product.

6. The front and rear positions of the terminal crimping and wires can be adjusted by directly inputting data on the touch screen, making the crimping position more accurate and reducing the adjustment time.

7. The cutting length of this machine can be 10 meters.

8. The pay-off stand has automatic pay-off and straight-line functions. Both coiled and coiled lines can be paid out.

9. This machine is a fully automatic machine with simple operation, stable quality and extremely high efficiency.

Front end/rear end: front end 0-15mm, rear end 0-15mm
