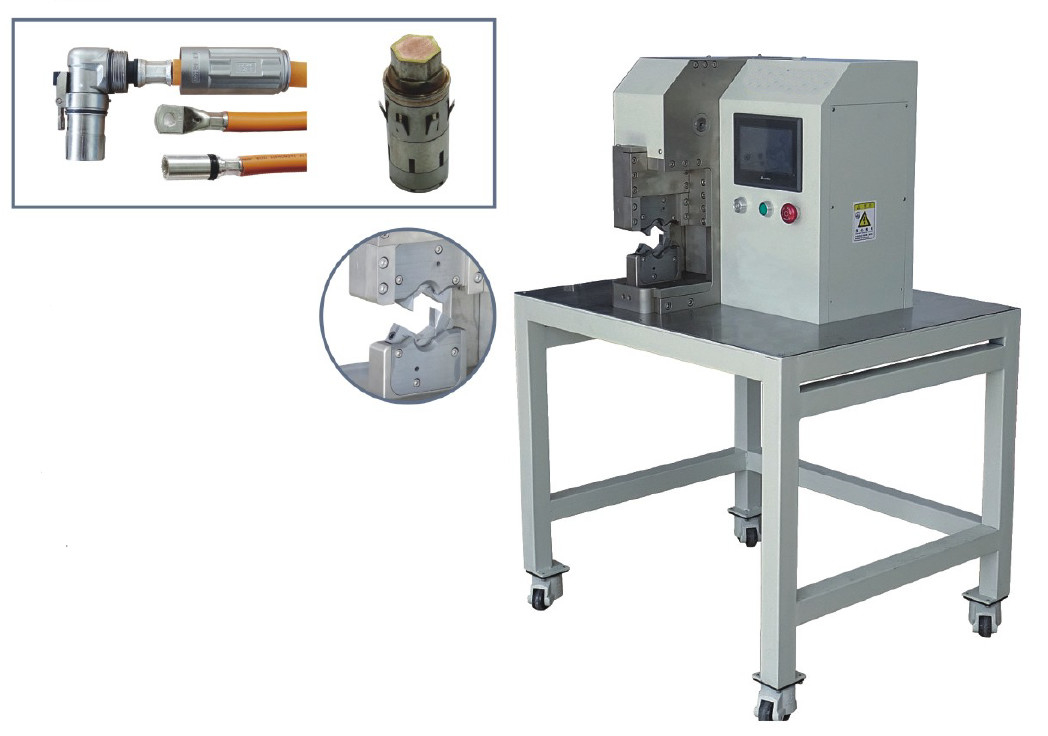

RS-6F Elbow type hexagonal crimping machine without mold change

RS-6F Elbow type hexagonal crimping machine without mold change

Feature:

1. Suitable for crimping operations of non-standard terminals or crimping terminals;

2. No need to change molds, servo control system, high accuracy;

3. The crimping interface is separated, suitable for crimping contact of intermediate connections and new energy right-angle terminals;

4. The actual square number of the wire can be adjusted to provide a clearer field of view;

5. Compact structure, space saving and low working noise.

Parameters:

Model: RS-6F elbow type hexagonal mold-free crimping machine

Wire diameter range: 6-120mm

Force: 200KN

Maximum diameter: 38mm

Crimp width: 12.5mm (customizable)

Power supply: AC220V50HZ

Power: 2300W

Dimensions: 700×860×1260mm

Weight: 160KG

Machine video:
