RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp
  • RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp
RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp

RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp

Place of Origin China
Brand Name RKENS
Model Number RS-0540
Product Details
Usage:
Strip And Crimp Insulated Tubular Ferrules
Ferrule Size:
0.5-4sqmm
Function:
Strip,twist, Insert Ferrule, And Press
Speed:
1000-1300PCS/H
Product Description

Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature



Intro:

This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding. It is a semi-automatic type press machine, manually putting wires.



Machine video: https://youtu.be/K1mIHV0KncA



Strip and crimp, auto feeding ferrules.



Suitable:

Crimping range: 0.3 to 4 sqmm. Maximum crimping length 12mm
Crimp shape: quadrilateral (square)/hexagon (round)/four-sided single-sided riveting (square)
Stripping length: The shortest sheathing wire stripping range is 40mm
Crimping range: 0.5 square to 4 square. Maximum crimping length 12mm
Capacity: The four actions of rotating peeling, twisting, threading, and crimping are completed in 2.5 seconds
(1000-1300pcs/hour)

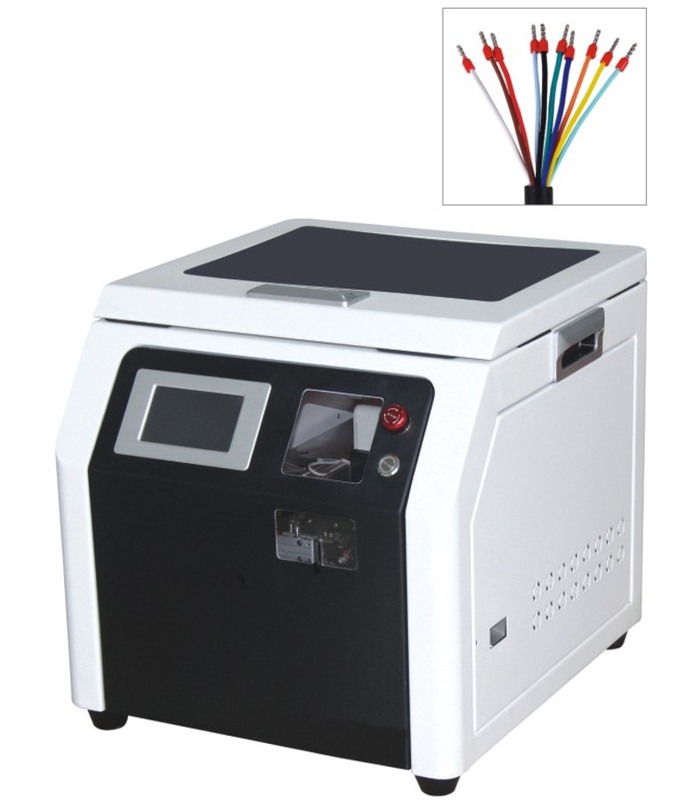

RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp 0
Parameters:
Model RS-0540 Insulated Tubular Terminals Pressing Machine
Specification

0.5mm -2.5mm (terminal conduit length 12mm or less)

4.0mm (terminal conduit length 10mm or less)
Detect device terminal supply detection, device lack
Drive Mode Driving mode motor/imported ball screw control method
Control Mode ouch screen and programmable controller, MOONS drive
Wire Clamping device Wire clamping device motor drive, clamping force program control
Crimping Device motor drive, crimping force program control
Storage capacity 100 kinds of cable crimping data
Pneumatic device Pneumatic device SMC solenoid valve, SMC cylinder
Power supply 220V, 50HZ/60HZ
Gas source 0.6~0.8Mpa (please use clean and dry air source)
Size L450mm * W350MM * H425mm
Weight About 68KG




RS-0540 Auto Tubular Ferrule Crimp Machine With Vibration Bowl Feeder, Strip&Crimp 1

Machine video:
