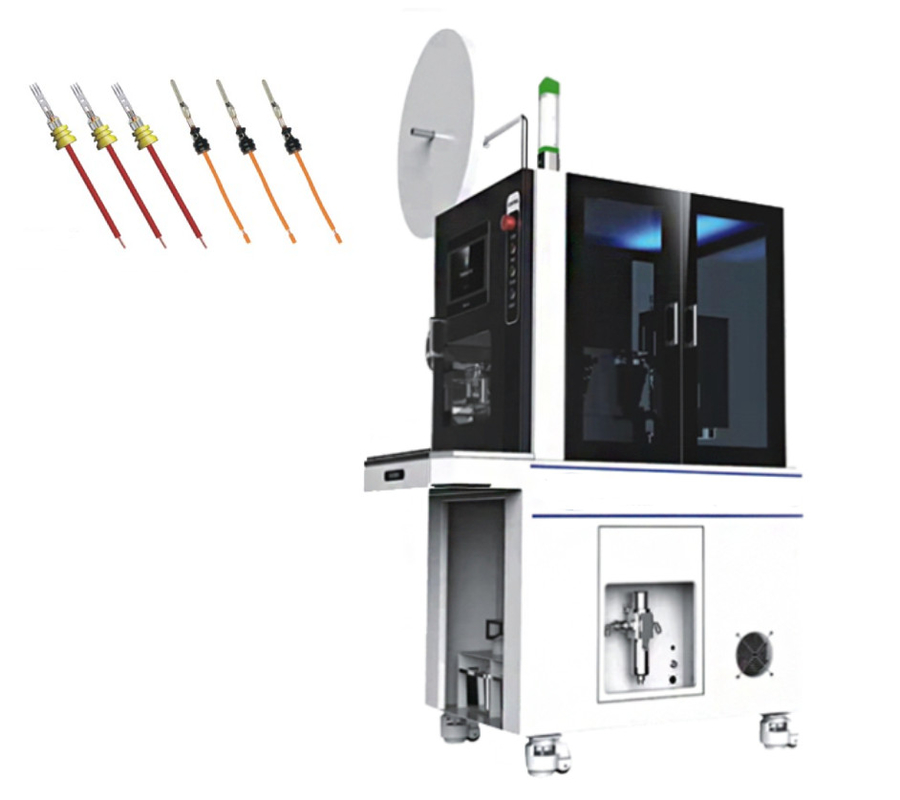

RS-2000F Wire Strip & Insert Connector Seal And Crimp Machine

RS-2000F Wire Strip & Insert Connector Seal And Crimp Machine

Intro:

This machine uses a linear module to connect the three processes of connector seal inserting, wire stripping and crimping in an orderly manner, saving manpower and improving labor efficiency. The parameters can be saved and adjusted, and each function can be used independently.

Specification:

Model: RS-2000F Wire strip and waterproof seal insert and crimp machine

Power supply: AC 200V 50Hz

Air source: 0.5-0.7mpa

Body size: L560×W900×H1300MM

Total quantity: 150KG

Applicable wire diameter: 0.3-3mm²

Stripping length: 0mm-10 mm

Tangential error: ±0.02mm

Pressing capacity: 2.0T

Stroke: 40mm

C T: 3s

Production capacity: 1000-1200 pieces/H

Applicable waterproof plug: ≤∮10×10 (customized track according to waterproof plug)

Features:

This machine uses a linear module to connect the three processes of connector seal insertion, stripping and crimping in an orderly manner, saving manpower and improving labor efficiency. The parameters can be saved and adjusted, and each function can be used independently.

1. The stripping length can be adjusted by data;

2. The depth of the waterproof plug can be adjusted according to the data of the glue position between the stripping mouth and the waterproof plug;

3. The end insulation depth can also be adjusted by data according to the topcable position;

4. The terminal machine is driven by a high-efficiency servo motor, with high-speed stamping and stable pressure;

5. The stripping slide adopts a screw drive to ensure accurate stripping length;

6. The insulation stripping mechanism adopts a motor plus screw drive, and the tangent depth can be adjusted by data;

7. The waterproof plug feeding structure is simple and easy to replace, meeting the customer's requirements for multiple products and multiple types;

8. This machine is simple to operate, stable in quality, and concentrated in power.

Machine video:  https://youtube.com/shorts/zS-XVVAoBek?si=cr3Uo_sIM5dt7Y31
