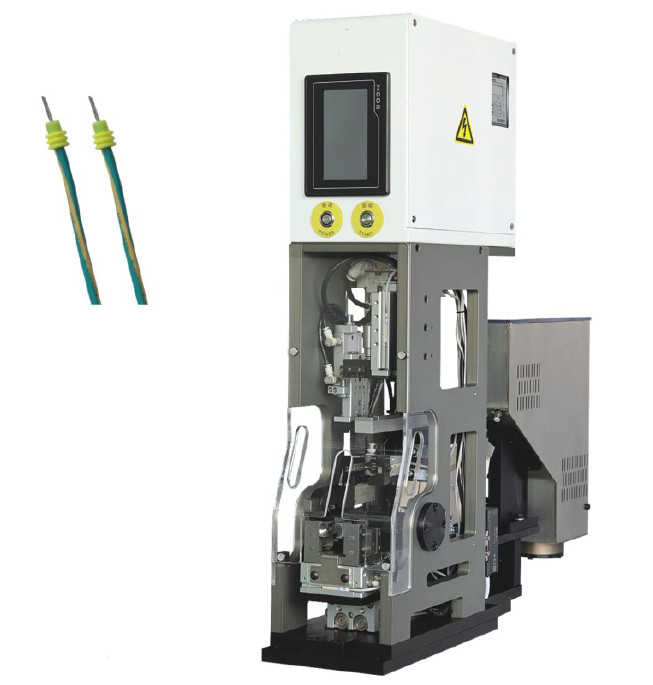

RS-605F Semi Automatic Waterproof Seal Connector Inserting Machine

RS-605F Semi Automatic Waterproof Seal Connector Inserting Machine

Intro:

It adopts PLC control system, precise vibration bowl feeding, compact body, sensitive action, accurate and efficient waterproof seal insertion position; different types of waterproof plugs only need to replace corresponding accessories: the catheter and the pin can be quickly inserted and removed, the insertion speed is fast, and the production efficiency is significantly improved.

Machine video:   https://youtube.com/shorts/fuJ0d01iXzs?si=JO4BTzzRG3ukD9Aq

Specification:

Applicable waterproof plug: outer diameter x length ≤ 16x15 (MAX) (feeding track needs to be customized according to different waterproof plugs)

Processing time: about 300ms

Production: 4000 pcs/h

Air source: 0.5-0.62mpa

Power supply: AC220V 50HZ

Motor: 0.1KW

Weight: 35kg

Dimensions: 100x830x650mm

Feature description:

1. Adopt PLC control system, precise vibration plate feeding, compact body, sensitive action, accurate and efficient bolt insertion position;

2. Different types of waterproof plugs only need to replace the corresponding accessories;

3. The catheter and the needle can be quickly inserted and removed, the wearing speed is fast, and the production efficiency is significantly improved;

4. There is real-time monitoring of the bolt position and the presence of waterproof bolts, and automatic fault detection and digital display prompts.

Features

1,Adp ot PLC control system, precision feed tray to feed, machine smaller, action sensitivity, wear position higher accuracy.

2,Different model of Waterproof plug, Just need change homologous parts.

3,That Can fast into conduit and contact pin, insert into speed quick, distinctness improve prodution efficieney.

4,About wear position and Waterproof plug is have or not, have real time Monitor, Automatic fault detection and digital display.
