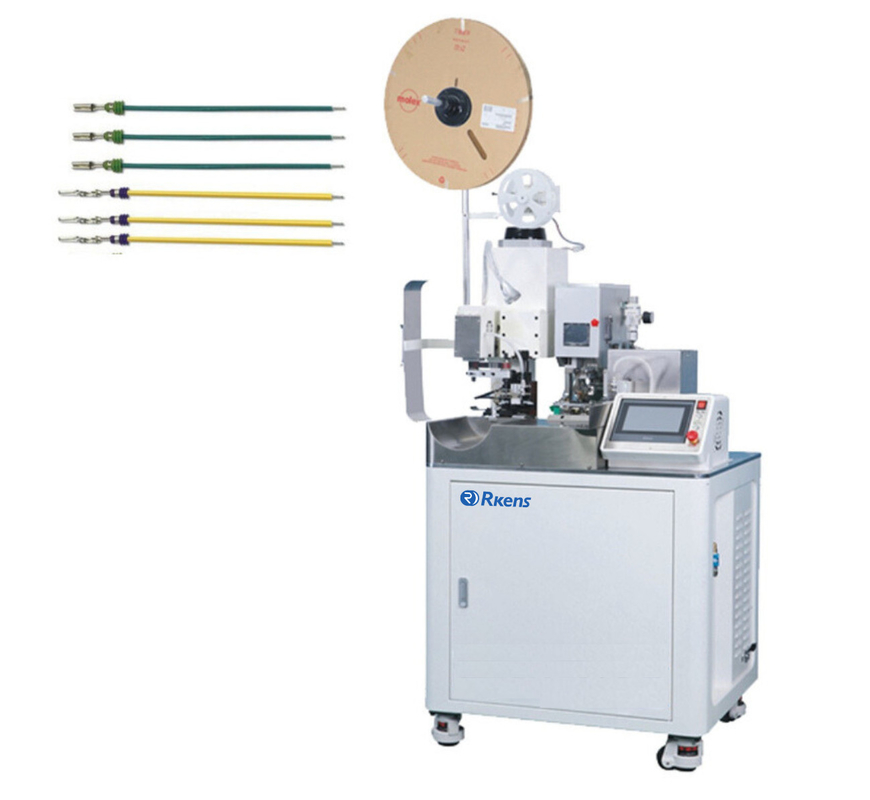

RS-02DC Fully Automatic Single-Side Waterproof Plug Terminal Sealing And Crimping Machine

RS-02DC Fully Automatic Single-Side Waterproof Plug Terminal Sealing And Crimping Machine

Intro:

This is a fully automatic single-head waterproof plug sealing crimping machine. One end strips and twists the wire, and the other end inserts the waterproof plug crimping terminal. The waterproof plug is automatically fed through the automatic feeding system. One machine can process a variety of different products. When replacing the waterproof plug, you only need to replace the corresponding track fixture. The whole machine has compact structure, small footprint, strong versatility, and high cost performance.

Machine Specification:

Model: RS-02DC fully automatic single-head waterproof plug terminal Crimping machine

Power supply: AC220V 50/60HZ

Function: wire cutting, single-end peeling, double-end peeling, single-end waterproof plug

Production capacity: 2500-2800 pieces/hour (length within 100-300mm)

Processable wire range: AWG#28-AWG#16

Cutting length: 50mm-9999mm

Cutting accuracy: Variation range: 1mm+cutting length·0.2% or less

Peeling length: 1.5mm-10mm

Crimping capacity: 2.0T/3.0T terminal machine

Air pressure: 4-6kgf (need to use clean and dry air)

Detection device: detection of presence of wires, detection of terminal crimping, detection of blocked wires, low air pressure detection

Overall dimensions: 700WX800LX1500H (mm)

Weight: about 348kg

Features:

1.The crimping machine is integrally formed with nodular cast iron,it is hard and stable.

2.The default crimping stroke is 30mm, with standard OTP applicator.

3.LCD touch screen, for easy parameter setting ,parameters such as cutting length, stripping length, twisting strength, inserting waterproof plug position, crimping position and other parameters can be set in the program.

3.The program memory function can save the processing parameters of different products into different program numbers, and the corresponding crimping parameters can be called out with one key when switching products.
