Name: | 3 Axis 4 Axis UV/Silicone/Two Components Glue Filling Spraying Dispensing Machine | Suitable: | Various Products And Adhesive Dispensing |
---|

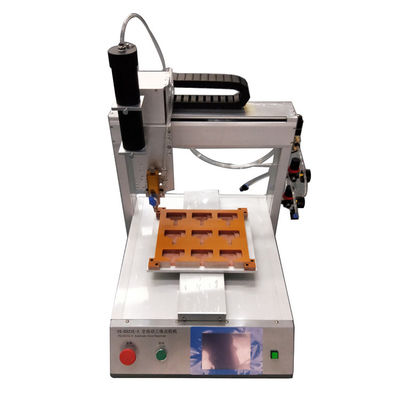

3 Axis 4 Axis UV/Silicone/Two Components Glue Adhesive Filling Spraying Dispensing Machine
What is glue dispensing machine?
Glue Dispensing machine, also known as glue painting machine, adhesive dispenser, gluing machine, glue filling machine, liquid spraying machine, etc., It is specially designed to control the fluid adhesive. The automatic machine that drips and coats the fluid on the surface of the product or inside the product. It can realize 3-axis and 4- axis path dispensing, precise positioning, precise glue control, no wire drawing, no glue leakage, and no glue dripping. The glue dispenser is mainly used for the precise point, injection, coating and dripping of glue, paint and other liquids in the product process to the precise position of each product, which can be used to achieve dots, lines, circles or arcs.
What type liquid adhesive can it work?
Machine can works for Silica gel, EMI conductive adhesive, UV glue, AB two components glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint, etc.
What product can it work?
Glue Dispensing Robot is widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.
What type machines do we have?
We can provide different solution according to customers' glue and dispensing requirements.
Working platform can be customized too.
Below is our standard glue filling machine specification
Model | YS-D331E | YS-D441E | YS-D551E |
Working area(X/Y/Zmm) | 300x300x100 | 400x400x100 | 500x500x100 |
Max. Speed | 500mm/sec | ||
Resolution | 0.01mm | ||
Repeatability | +/-0.01mm | ||
Display | 5.7’ LCD | ||
Drive mode | Micro Stepping Motor | ||
Power | 220V /110V | ||
Working enviroment |
Temperature:5-40 degrees Celsius Humidity:20-90%RH |
||
Size(L*W*H) | 460x450x480mm | 560x550x500 | 660x650x550 |
Weight | 40KG | 50KG | 60KG |
