Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature

Name: Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature
Brand: RKENS
SKU: RS-0540
Price: 1 USD
Availability: InStock
Rating: 4.5 (131 reviews)

Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature supplier

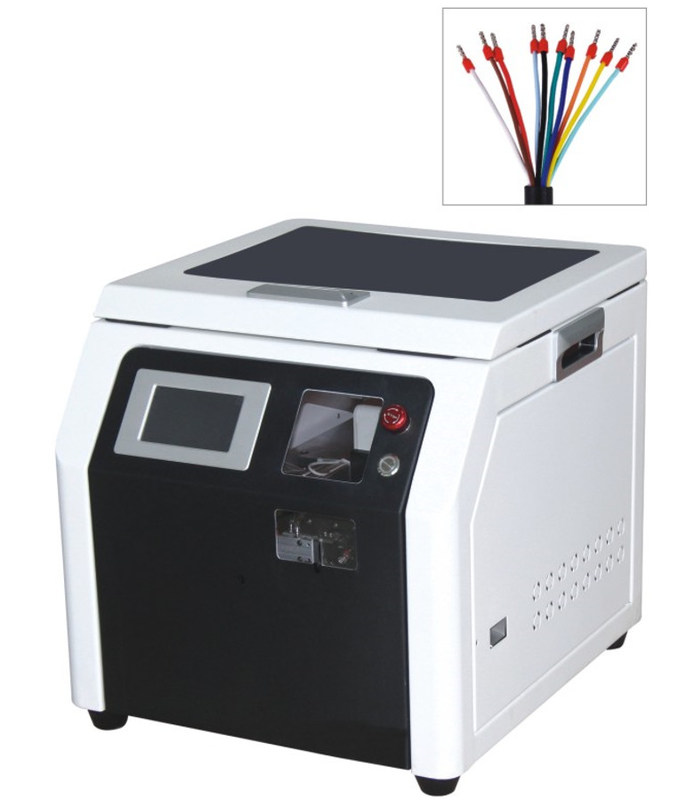

Large Image : Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-0540

Contact Now

Detailed Product Description

Usage:	Strip And Crimp Insulated Tubular Ferrules	Ferrule Size:	0.5-4sqmm
Function:	Strip,twist, Insert Ferrule, And Press	Speed:	1000-1300PCS/H

Auto Feed Tubular Wire Ferrule And Crimp Ferrule Machine With Strip Wire Feature

Intro:

This crimping machine is suitable for tubular type terminals pressing. It can auto sensing, stripping, inserting terminals, pressing, and feeding. It is a semi-automatic type press machine, manually putting wires.

Machine video: https://youtu.be/K1mIHV0KncA

Strip and crimp, auto feeding ferrules.

Suitable:

Crimping range: 0.3 to 4 sqmm. Maximum crimping length 12mm

Crimp shape: quadrilateral (square)/hexagon (round)/four-sided single-sided riveting (square)

Stripping length: The shortest sheathing wire stripping range is 40mm

Crimping range: 0.5 square to 4 square. Maximum crimping length 12mm

Capacity: The four actions of rotating peeling, twisting, threading, and crimping are completed in 2.5 seconds

(1000-1300pcs/hour)

Parameters:

Model	RS-0525 Insulated Tubular Terminals Pressing Machine
Specification	0.5mm -2.5mm (terminal conduit length 12mm or less) 4.0mm (terminal conduit length 10mm or less)
Detect device	terminal supply detection, device lack
Drive Mode	Driving mode motor/imported ball screw control method
Control Mode	ouch screen and programmable controller, MOONS drive
Wire Clamping device	Wire clamping device motor drive, clamping force program control
Crimping Device	motor drive, crimping force program control
Storage capacity	100 kinds of cable crimping data
Pneumatic device	Pneumatic device SMC solenoid valve, SMC cylinder
Power supply	220V, 50HZ/60HZ
Gas source	0.6~0.8Mpa (please use clean and dry air source)
Size	L450mm * W350MM * H425mm
Weight	About 68KG
