Factory Desktop Glue Dispensing Filling Machine With Pressure Tank And Dispense Valve

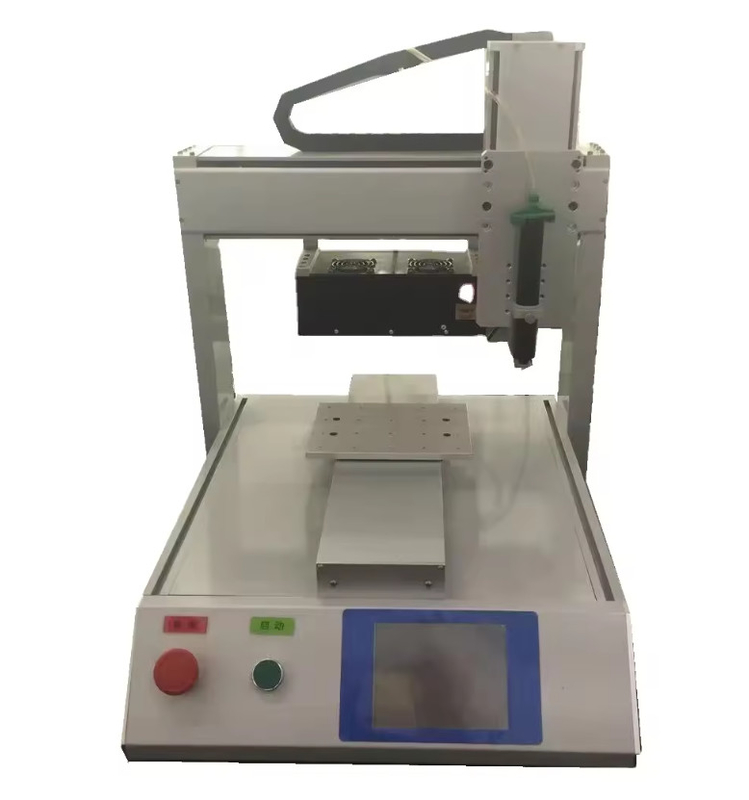

Large Image : Factory Desktop Glue Dispensing Filling Machine With Pressure Tank And Dispense Valve

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	YS-D331-X

Contact Now

Detailed Product Description

Factory Desktop Glue Dispensing Filling Machine With Pressure Tank And Dispense Valve

Intro:

This glue dispensing machine can work for various glues liquid and product. For silicone glue, we provide silicone bucket and dispensing valve. The automatic machine that drips and coats the fluid on the surface of the product or the inside of the product can realize three-dimensional and four-dimensional path dispensing, precise positioning, precise control of glue, no drawing, no leakage, no glue.

Suitable:

The glue dispenser is mainly used to accurately point, inject, apply and drop glue, paint and other liquids in the product process to the precise position of each product. It can be used to achieve dots, lines, circles or arcs.

Available glue:

Glue dispenser suitable for fluids as follow : Solvents ,adhesives,oil paint,chemical materials,solid gum ,silicon , EMI conducting resin ,UV glue, AB glue, quick-drying glue, epoxy glue, polyurethane adhesive, sealant, hot glue, red glue, solder paste, acrylic adhesive, adhesive wear, crystal glue, glue, horn glue, instant glue, rubber, paint, enamel paint, lacquer, printing ink, paint.

Features:

Full Automatic, English. Easy operation
Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
Adjustable gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be customized according to the product size.
Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...

Technical Parameters:

Model	YS-D331-X	YS-D441-X	YS-D551-X
Working area(X/Y/Zmm)	300x300x80	400x400x80	500x500x80
Drive Mode	Stepping motor + silver guide rail + timing belt
Max. Speed	500mm/sec
Resolution	0.01mm
Repeatability	±0.02mm-0.05mm
Display	5.7’ LCD
Drive mode	Micro Stepping Motor
Air Source	0.4—0.7Mpa
Power	220V /110V 50HZ/60HZ
Max load	X: 10KG, Y:10KG Z:10KG
Program mode	Touch screen or computer file input / can be equipped with computer operation
Program record capacity	File format save, the number of files is not limited, the total capacity is 16M
I/O Signal	16 In puts/16 Out puts
Working enviroment	Temperature:5-40 degrees Celsius Humidity:20-90%RH
Size(LWH)	460x450x480mm	560x550x500	660x650x550
Weight	35KG	45KG	55KG
