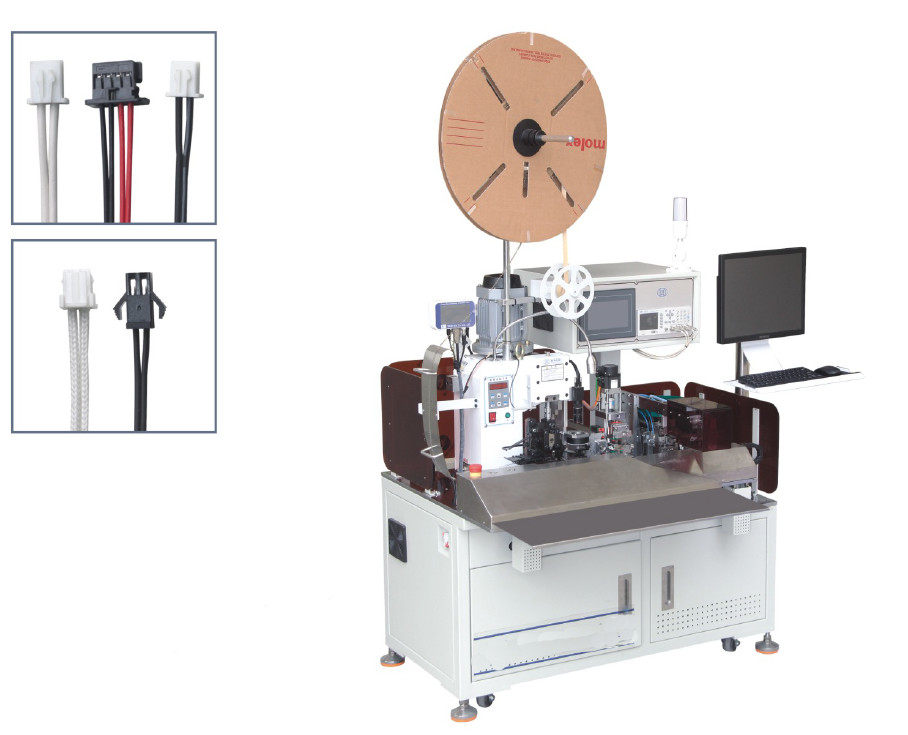

RS-6800CK Automatic Wire Crimping And Plastic Shell Inserting Machine For Sensor Industry
Intro:
Feature description:
1. This equipment manually lays out the wires, and realizes the continuous automatic processing of automatic cutting, stripping, terminal crimping, visual inspection of terminal appearance, terminal shell insertion, and electrical performance testing;
2. Servo control, pneumatic components, screw guide rails, etc. are all world-renowned brands to ensure the overall performance and stability of the equipment;
3. Terminal pressure management device and CCD visual detection are optional. Abnormal operation will cause alarm and shutdown, making operation worry-free and quality guaranteed.
4. This machine adopts PLC programmable control system and touch-type human-machine interface, which makes parameter adjustment convenient and the operation simple and flexible;
Parameters:
| Model |
RS-6800CK Automatic terminal crimping and shell inserting machine |
| Applicable wire |
Electronic wire, parallel wire, flat wire, flat sheath wire; AWG#28-AWG#18; OD: 0.8-2.5MM |
| Function |
Cutting, stripping, terminal crimping, shell insertion, electrical testing, appearance inspection |
| Strip length |
0.1-4MM |
| Terminal specification range |
After crimping ≤20mm |
| Plastic shell specification range |
Appearance ≤L=34mm W=12mm H=12mm |
| Detection function |
Core wire CCD inspection, terminal pressure inspection, terminal riveting appearance CCD inspection, electrical performance inspection |
| Pressing capacity |
2.0T |
| Power supply |
AC 220V/110V 50/60HZ |
| Aire pressure |
0.5-0.7MPa |
| Size |
L2100×W1000 x H2200mm |
| Weight |
About 450KG |
