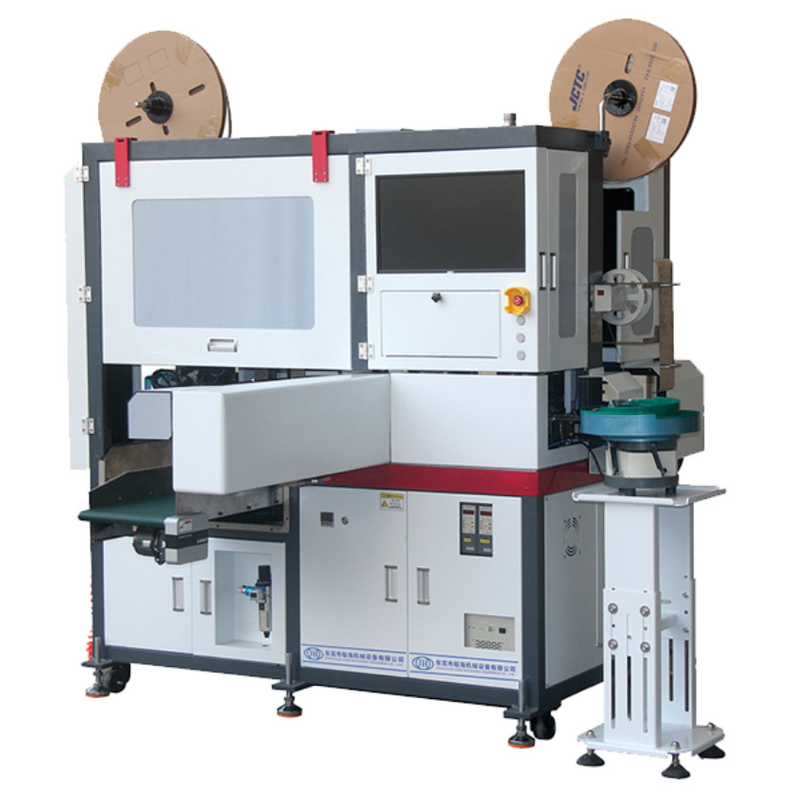

RS-09B Fully Automatic Double-Side Crimping And Housing Connector Inserting Machine
RS-09B Fully Automatic Double-Side Crimping And Housing Connector Inserting Machine
Place of Origin
China
Brand Name
RKENS
Model Number
RS-009
Product Details
Product Description
RS-009 Fully Automatic Double-Side Crimping And Housing Connector Inserting Machine
Intro:
It realizes automatic wire cutting and stripping, automatic terminal crimping and housing connector inserting at both ends, and one end can switch between terminal crimping/twisting and tinning, integrating quality control in continuous automated processing.
Specification:
Name
RS-09B Fully automatic double-end terminal and housing connector insert machine
Power supply
AC 220V/110V 50HZ/60HZ
Standard functions
wire cutting, stripping at both ends, terminaling at both ends, shelling at both ends, or switchable terminaling/twisting at one end, tinning.
Can be customized single or two-end twisting wires function.
Can be customized for shrink tube inserting and heating function.
Front end 1-6mm, rear end 1-6mm (half stripping or full stripping, can be customized)
Tinning length
1-6MM
Detection function
presence of wires, wire knots, terminals, plastic shells, air pressure alarm, motor abnormality, CCD visual detection (optional), etc.
Air pressure
0.6-0.7MPa (need to use clean and dry air source)
Equipment size
2160L×1900W×1900H (MM)
Equipment weight
about 900kg
Feature description:
1. It realizes automatic wire cutting and stripping, automatic terminal crimping and shelling at both ends, and one end can switch between terminal crimping/twisting and tinning, integrating quality control in continuous automated processing;
2. Universal for 2-15P, only a few parts need to be replaced for different specifications, simple and convenient;
3. Suitable for processing electronic wires, parallel wires, cable arrangements and other wires. It can process up to 24 wires with stable quality and high production capacity. It is suitable for spacing sizes of 1.0, 1.25, 1.5, 2.0, 2.54, 3.96 and other different specifications. It has strong versatility and is easy to change.
4. The service control, pneumatic components, guide rails, etc. adopt world-renowned brands to ensure the overall stability of the equipment;
5. Optional: terminal pressure management device, CCD visual inspection (wire sequence inspection, stripping inspection, terminal inspection, shell penetration inspection), automatic distinction between good and bad products, worry-free operation and quality assurance;
