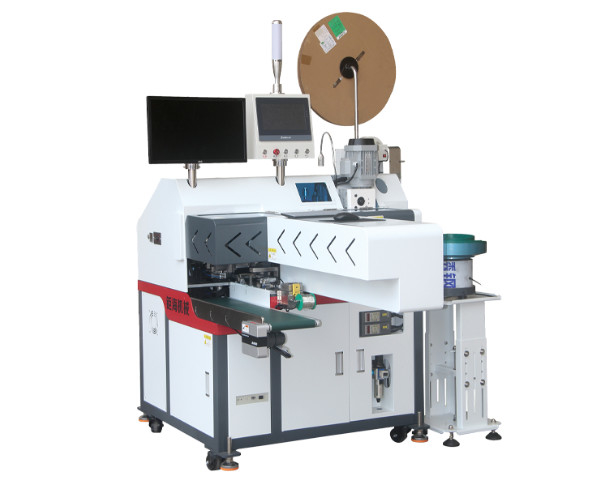

RS-05B Fully Automatic Single-End Crimping And Inserting Machine Housing Connector Machine

RS-05B Fully Automatic Single-End Crimping And Inserting Machine Housing Connector Machine

Intro:

Model: RS-05B Fully automatic single-end terminal and connector plugging machine

Power supply: AC 220V

Standard functions: wire cutting, single-end stripping, single-end terminal crimping, single-end plastic shell insertion; the other end half-stripping/full stripping, wire twisting, tinning

Optional functions: CCD detection, pressure detection, wire twisting

Capacity: 8000-9000 terminal positions

Wire cutting length: 30MM-800MM (special customization required)

Cutting accuracy: 0.1m

Specification:

Model: RS-05B Fully automatic single-end terminal crimping and inserting connector machine

Power supply: AC 220V/110V 50HZ/60HZ

Standard functions: wire cutting, single-end stripping, single-end terminal inserting, single-end plastic shell inserting; the other end half-stripping/full stripping, wire twisting, tinning

Optional functions: CCD detection, pressure detection, twisting wire

Production Capacity: 440-450 action cycles/H (24pcs terminals/time, wire length <=200mm)

Wire cutting length: 30MM-750MM(Retain shell position) (special customization required)

Cutting accuracy: +/- 0.1mm + length *0.1%

Applicable plastic shell spacing size: 1.0, 1.25, 1.5, 2.0, 2.54, 3.96 (mm)  One-layer plastic shell

Processable wire range: AWG32#-AWG18#

Back stripping length: Front end 1-6mm, rear end 1-6mm (half stripping or full stripping, can be customized)

Tinning length: 1-6MM

Detection function: presence or absence of wires, wire knots, presence or absence of terminals, presence or absence of plastic shells, air pressure alarm, motor abnormality, etc.

Air pressure: 0.6-0.7MPa (need to use clean and dry air source)

Equipment size: 1900L×1400W×1800H (MM)

Equipment weight: about 620kg

Key Features:

1. It realizes automatic wire cutting and stripping, one end is terminated and shelled, and the other end can be switched to terminate/twist and tin, and it integrates quality control in one continuous automatic processing;
2. 2-20P universal, same specifications with different pins, j only need to replace a few parts, simple and convenient;
3. Suitable for processing electronic wires, flat ribbon wires,suitable for spacing sizes: 0.8,1.0, 1.25, 1.5, 2.0, 2.54, 3.96 and other different specifications, strong versatility and easy replacement;
4. Servo control, pneumatic components, guide rails, etc. adopt world-renowned brands to ensure the overall stability of the equipment;
5. Optional: terminal pressure management device, CCD visual inspection (wire damage detection, terminal detection, shell penetration detection), automatic distinction between good and bad products, worry-free operation, quality assurance;
6. Adopting touch screen human-machine interface, convenient parameter adjustment, simple and flexible operation;
7. Can be customized with twisting wires function. Wire twisting Output can be 2 pairs/time, 4 paris/time 6 paris/time. One -end shell inerting.
8. With strong R&D capabilities, we can upgrade and expand the functions of equipment intelligently.
