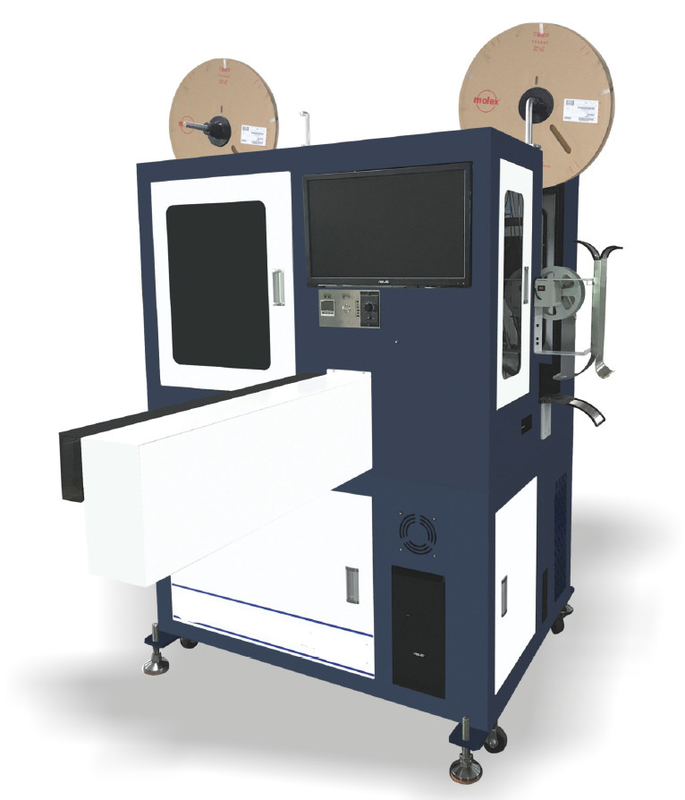

RS-07 Fully Automatic Double-Side Crimping And Single-Side Housing Connector Inserting Machine

RS-07 Fully Automatic Double-Side Crimping And Single-Side Housing Connector Inserting Machine

Intro:

It realizes automatic wire cutting and stripping, terminaling and shelling at one end, and terminaling/twisting and tinning at the other end, integrating quality control in continuous automatic processing. 2-12P is universal, and only a few accessories need to be replaced for different specifications, which is simple and convenient. it is suitable for processing various wires such as electronic wires, parallel wires, and cable arrangements, and is suitable for different specifications such as spacing sizes: 1.0, 1.25, 1.5, 2.0, 2.54, 3.96, etc., with strong versatility and easy changeover.

Specification:

Model:RS-07 fully automatic double-end terminal and single-end shell inserting machine

Power supply: AC 220V/110V  50HZ/60HZ

Standard functions: wire cutting, stripping at both ends, terminaling at both ends, single-end plastic shell insertion; half-stripping/full stripping, terminaling/twisting, tinning at the other end

Optional functions: pressure management device, CCD visual inspection, wire twisting

Twisting wires crimping and inserting capacity(Optional): Output 2 pairs/time. L=100mm  800 action cycles* 2 pairs/H(1600pcs/H)

Wire twisting length range(optional):  front end not twising: 8mm   minimum middle twisting length: 15mm

Two-side crimp&one-side insertion Capacity: 600 action cycles/H (12 terminals/time)  (wire length <=200mm)

Wire cutting length: 50MM-750MM (special customization required)

Cutting accuracy: +/- 0.1mm + length *0.1%

Suitable Spacing size of plastic shell: 0.8, 1.0, 1.25, 1.5, 2.0, 2.54, 3.96 (mm)   One-layer plastic shell

Processable wire range: AWG32#-AWG18# (special needs to be customized)

Back stripping length: 1-9MM (half stripping or full stripping)

Tinning length: 1-9MM

Detection function: Whether there is wire, wire knot, whether there is terminal, whether there is plastic shell, air pressure alarm, motor abnormality, CCD visual inspection, tin deficiency alarm, liquid level detection, etc.

Air pressure: 0.6-0.8MPa (need to use clean and dry air source)

Equipment size: 1850L×1250W×1760H (MM)

Equipment weight: about 680kg

Key Features:

1. It realizes automatic wire cutting and stripping, one end is terminated and shelled, and the other end can be switched to terminate/twist and tin, and it integrates quality control in one continuous automatic processing;
2. 2-15P universal, different specifications only need to replace a few parts, simple and convenient;
3. Suitable for processing electronic wires, flat ribbon wires, suitable for spacing sizes: 0.8, 1.0, 1.25, 1.5, 2.0, 2.54, 3.96 and other different specifications, strong versatility and easy replacement;
4. Servo control, pneumatic components, guide rails, etc. adopt world-renowned brands to ensure the overall stability of the equipment;
5. Optional: terminal pressure management device, CCD visual inspection (wire damage detection, terminal detection, shell penetration detection), automatic distinction between good and bad products, worry-free operation, quality assurance;
6. Adopting touch screen human-machine interface, convenient parameter adjustment, simple and flexible operation;
7. With strong R&D capabilities, we can upgrade and expand the functions of equipment intelligently.
