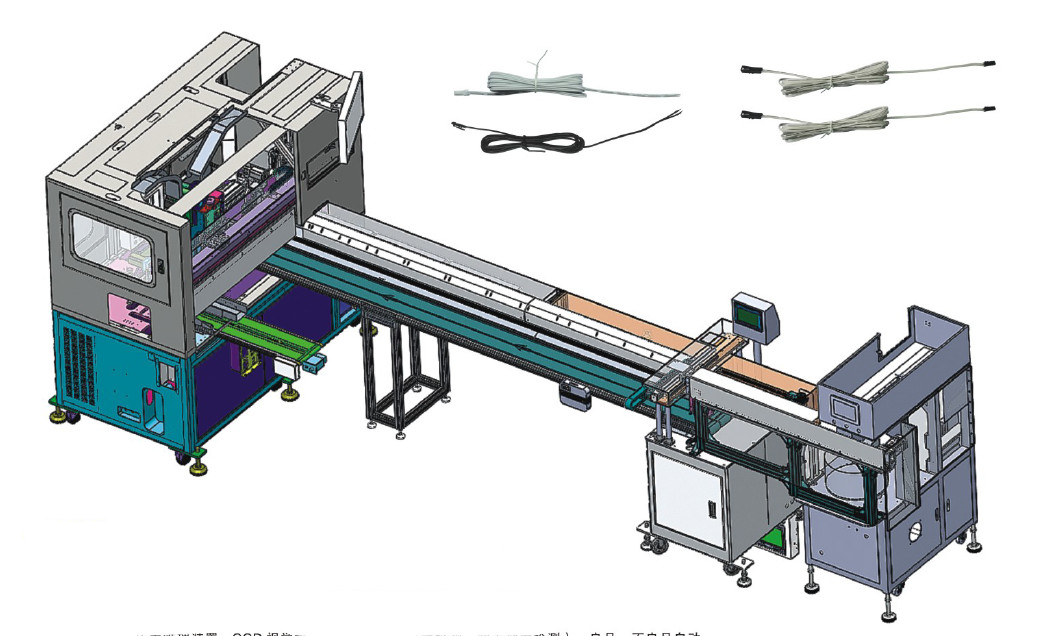

RS-10/11 Automatic Crimping And Shell Inserting Machine With Winding&Binding Feature
Feature description:
1. This equipment realizes automatic wire separation, cutting and stripping, terminal crimping and shelling at both ends, and the rear end can switch between terminal crimping/tail twisting, tinning, winding and tying, and integrates quality control in one continuous automated processing;
2. Suitable for processing various wire materials such as flat wires and electronic wires. Very few parts are required to replace plastic shells of different specifications, which is convenient for changing and easy to operate;
3. Servo control, pneumatic components, guide rails, etc. adopt world-renowned brands to ensure the overall stability of the equipment;
4. Optional: terminal pressure management device, CCD visual inspection (core wire inspection, terminal detection, shell penetration detection), automatic distinction between good and bad products, worry-free operation, quality assurance;
5. Adopt touch screen human-machine interface, convenient parameter adjustment, simple and flexible operation;
6. Possess strong R&D capabilities and be able to intelligently upgrade and expand equipment functions.
Parameters:
| Model |
RS-10 Fully automatic wire single-end crimp &shell insert&wind&bind machine |
RS-11automatic wire two-end crimp &shell insert&wind&bind machine |
| Power |
AC 220V/110V 50HZ/60HZ |
AC 220V/110V 50HZ/60HZ |
| Standard function |
Wire cutting, stripping at both ends, single-end termination, single-end plastic shell insertion; half-stripping/full-stripping of the tail, wire twisting, tinning, wire winding and wire tying |
Wire cutting, double-end stripping, double-end termination, and plastic shell insertion; |
| Optional features |
Pressure detection; 2. CCD visual detection |
Pressure monitoring device, stranded wire, CCD visual inspection |
| Capacity |
1000-1200 wires/H (DuPont 2P male terminal, wire length 3000mm) |
600 pieces/H (DuPont male and female ends, length 3000mm) |
| Cutting length |
30mm-3200m |
50-3200mm |
| Cutting accuracy |
±0.1mm+cut length*0.1% or less |
±0.1mm+cut length*0.1% or less |
| Plastic shell size |
DuPont, single layer plastic shell, plug shell P number 2P, 3P |
DuPont male and female ends, single layer plastic shell |
| Available wire |
AWG24#-AWG18# (electronic wire, flat wire) |
AWG24#-AWG18# (electronic wire, flat wire) |
| Stripping length |
Front end 1-6mm, rear end 1-9mm (special needs to be customized) |
1-9mm (half-peeled or full-peeled, special specifications can be customized) |
| Tinning length |
1-9mm (special needs to be customized) |
1-9mm |
| Detection function |
Check whether there are wires, wire knots, terminals, plastic shells, plug-in shell in place, air pressure alarm, motor abnormalities, etc. |
| air pressure |
0.6-0.7MPa (need to use clean and dry air source) |
0.6-0.7MPa (need to use clean and dry air source) |
| Size |
9100L x 1500W x 1800H (MM) |
9100L x 2000W x 1800H (MM) |
| Weight |
About 1200kg |
About 1500kg |
