RS-02DC Fully Automatic Single End Wear Waterproof Bolt And Terminal Crimping Machine
  • RS-02DC Fully Automatic Single End Wear Waterproof Bolt And Terminal Crimping Machine

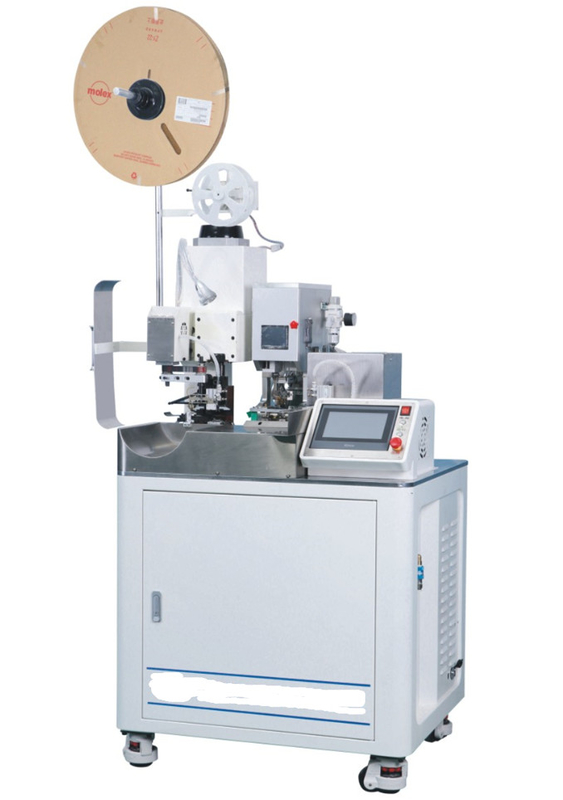

RS-02DC Fully Automatic Single End Wear Waterproof Bolt And Terminal Crimping Machine

Place of Origin China
Brand Name RKENS
Model Number RS-002DC
Product Details
Product Description



Specification



Model number: RS-02DC Fully Automatic Single end Terminal Crimping Machine And Wearing Waterproof bolts

 Power supply: AC220/110V 50/60HZ

 Function: wire cutting, single-end peeling, double-end peeling, single-end wearing waterproof plug

 Production capacity: 2500-2800 pieces/hour (within 100-300mm in length)

 Processable wire range: AWG#28-AWG#16

 Cutting length: 50mm-9999mm

 Cutting accuracy: Variation range: 1mm + cutting length · 0.2% or less

 Peeling length: 1.5mm-10mm

 Crimping capacity: 2.0T/3.0T terminal machine

 Air pressure: 4-6kgf (need to use clean and dry air)

 Detection device: detection of the presence or absence of wires, detection of whether the terminals are crimped or not, detection of wire plugging, detection of low air pressure

 Dimensions: 700WX800LX1500H (mm)

 Weight: about 348kg



Processing Samples

RS-02DC Fully Automatic Single End Wear Waterproof Bolt And Terminal Crimping Machine 0



RS-02DC Fully Automatic Single End Wear Waterproof Bolt And Terminal Crimping Machine 1
