RS-650 Servo Motor Semi-Automatic Ribbon Cable Crimping Machine

Name: RS-650 Servo Motor Semi-Automatic Ribbon Cable Crimping Machine
Brand: RKENS
SKU: RS-650
Price: 1 USD
Availability: InStock
Rating: 5 (178 reviews)

RS-650 Servo Motor Semi-Automatic Ribbon Cable Crimping Machine supplier

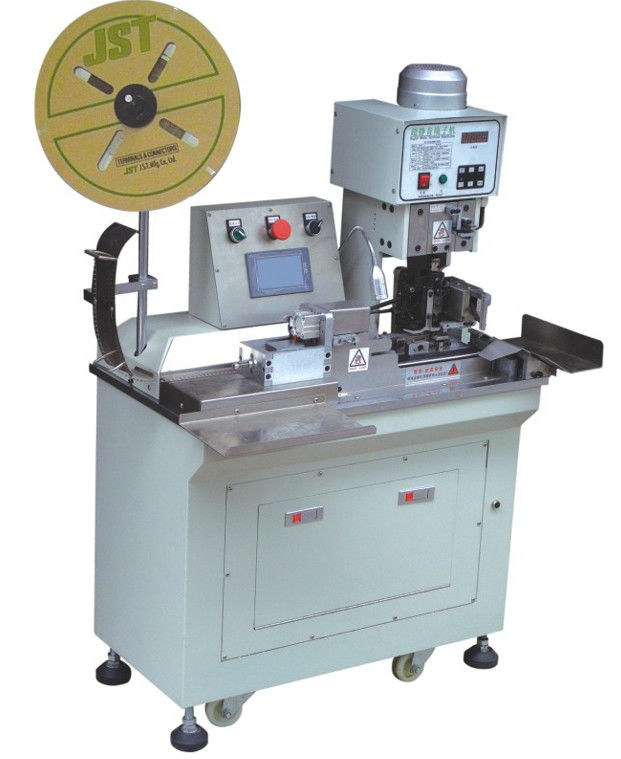

Large Image : RS-650 Servo Motor Semi-Automatic Ribbon Cable Crimping Machine

Product Details:

Place of Origin:	China
Brand Name:	RKENS
Model Number:	RS-650

Contact Now

Detailed Product Description

Name:	Semi-Automatic Ribbon Cable Crimping Machine	Usage:	Crimp Ribbon Cables

RS-650 Servo Motor Semi-Automatic Ribbon Cable Crimping Machine

Intro:

This machine is semi-automatic type ribbon cable terminal pressing machine. The ribbon cable should be stripped and splitted well.

Then operator put splitted and stripped ribbon cable into machine, machine will slide to to press terminals.

Suitable:

It works for ribbon cable. Machine can crimp terminals only. It can not strip and split.

Parameter:

Model	RS-650 Servo Motor Semi-automatic ribbon cable crimping machine
Wire Size	2468, 2651, electric ribbon cables
Ribbon cable pins	2P-25P (Can be customized for bigger P)
Driving gear	Taiwan Taida, Servo motor
Required ribbon cable length	>=60mm
Wire splitted length	25-30mm
Press Force	1.5T
Control mode	Touch screen +PLC
Efficiency	12000pcs terminals/H
Power supply	220V, 50HZ/60HZ
Strip length	0-5mm
Air Source	0.6-0.8MPA
Machine size	780x440x1300mm
Weight	200KG
