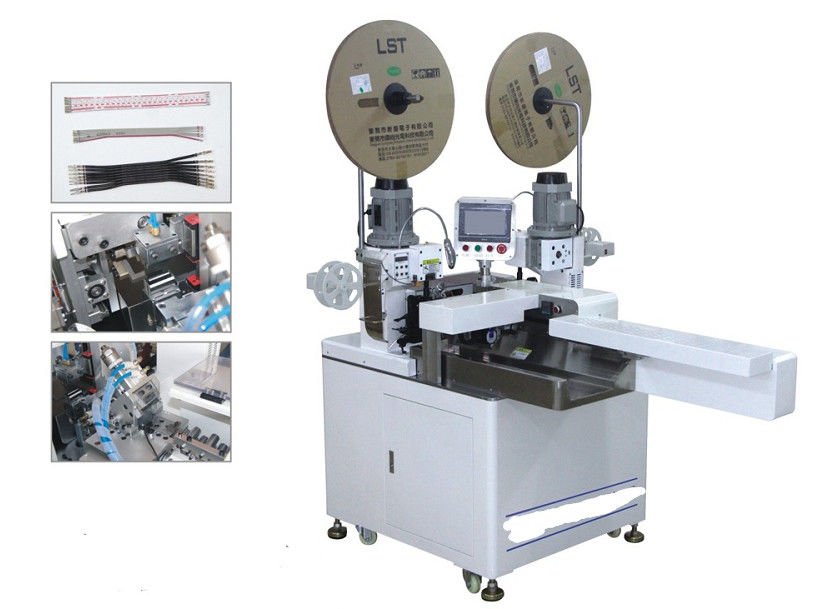

RS-20P Automatic Flat Ribbon Cable And Electric Wire Double-End Terminal Pressing Machine

Automatic Flat Ribbon Cable And Electric Wire Double-End Terminal Pressing Machine

Intro:

RS-20P is a multi-funtional wire cutting stripping and double-end crimping machine.  It works for both electric wires, and flat ribbon cables.

For ribbon cable, it can cut, strip, split. All parameters can be programmed by touch screen.

Machine is controlled by servo motor.

Suitable:

For electric wires and ribbon cables. 2468 wires, 1007, 20080, and AWG32-16AWG wires.
For ribbon cable: 2P-20P

Wire diameter: 0.8-2.5mm

Specification:

Features:

Features description:

1. Full servo control: greatly reduce the number of cylinders and improve equipment stability;

2. Improve the stripping structure: make the crimping extremely stable, as small as OD0.8, as large as 2.5, and flexible cable 20080, Samsung halogen-free cables, etc. can be crimped;

3. One machine for multiple purposes: it can cut and end flat cables, electronic wires;

4. One output two: corresponding to the cable with a small number of PINs, it can output two, which is greatly improved Production capacity;

5. Perfect function: support positive and negative pressure processing, interval pressing, half stripping;

6. Data archiving function: all relevant data of the cable can be archived, and all parameters can be replaced by one key when changing the line;

7. Easy to debug: Fork length, cutting length, stripping length, stripping depth, etc. are all set on the touch screen.
