Automatic One End Crimping And Tinning Machine With Cutting Stripping Feature

Place of Origin	China
Brand Name	RKENS
Model Number	RS-5505G

Product Details

Name:

Auto One End Crimping Tinning Machine

Usage:

Cut, Strip, One-end Crimp And Tin

Speed:

6000-8000PCS/H

Wire Size:

AWG24-AWG18, AWG24-AWG32

Servo Motor:

Mitsubishi

Display:

7 Inch Touch Screeen

Product Description

Automatic One End Crimping And Tinning Machine With Cutting Stripping Feature

Intro:

This full autoamtic machine enables you to fast speed cut, strip , tin and crimp wires. It is a fully programmable wire crimping and tinning machine. Cut, strip, twist, tin and crimp can be finished at same time. All parameters can be set by pressing LCD display easily.

Suitable:

Automatic wire cutting stripping crimping and tinning machine works for AWG24-AWG18, AWG24-AWG32 wires.

It can cut, strip, one-end crimping and tinning

Parameter:

Name	Automatic double-head five-wire terminal machine machine
Usage	both ends crimping, knife edge, sharpening, half stripping, testing production capacity
Capacity	1007#14-1007#26 Both ends crimping 1.5s
Speed	Speed minimum 40mm / 1 hour 3000 wires (feed speed 3000secMAX)
Cut length	40-9999mm
Cut length accuracy	±0.5mm Length<= 100mm ±1.0mm Length>= 100mm
Press ability	19600N (2.5T)
Control Mode	64-bit microcomputer system
Detect device	detects the presence of wires, detects that the wires are too tight, detects abnormalities in crimping and peeling, and detects air pressure drops
Power supply	AC220V 50 / 60HZ
Compressed air	0.4MPa-0.5MPa
Size	L1060xw800xH1330mm
Weight	About 460KG

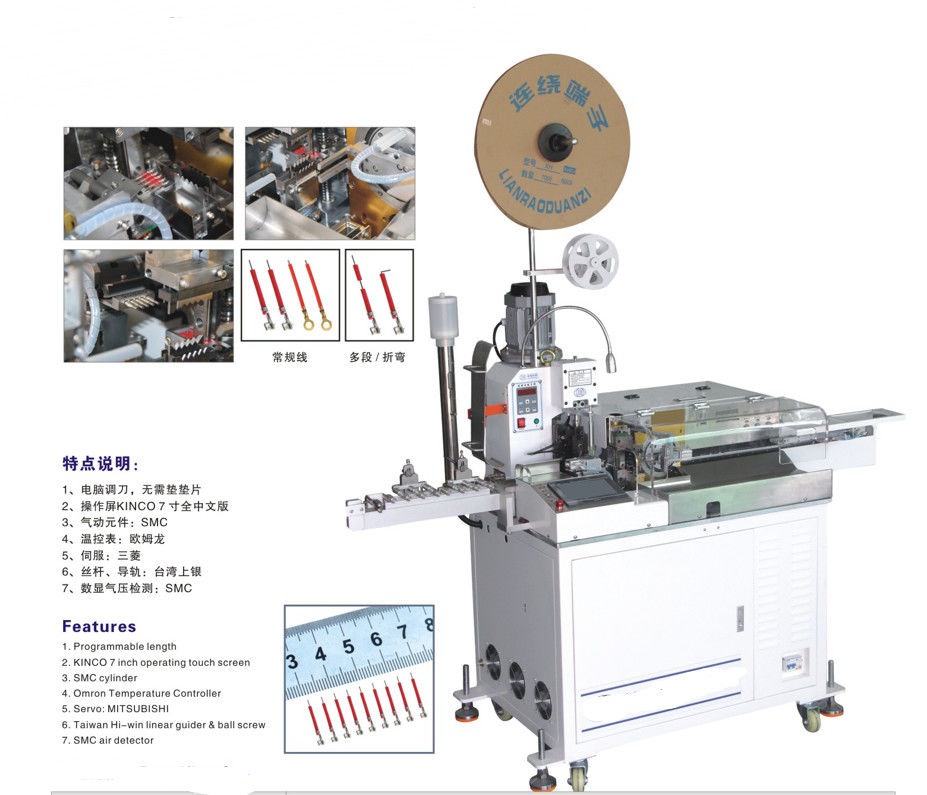

Features:

1. Programmable can be adjust by computer

2. 7inch touch panel

3. SMC cylinder

4. Omron temperature controller

5. Servo: MITSUBISHI

6. Taiwan HI-WIN linear guider and ball screw
